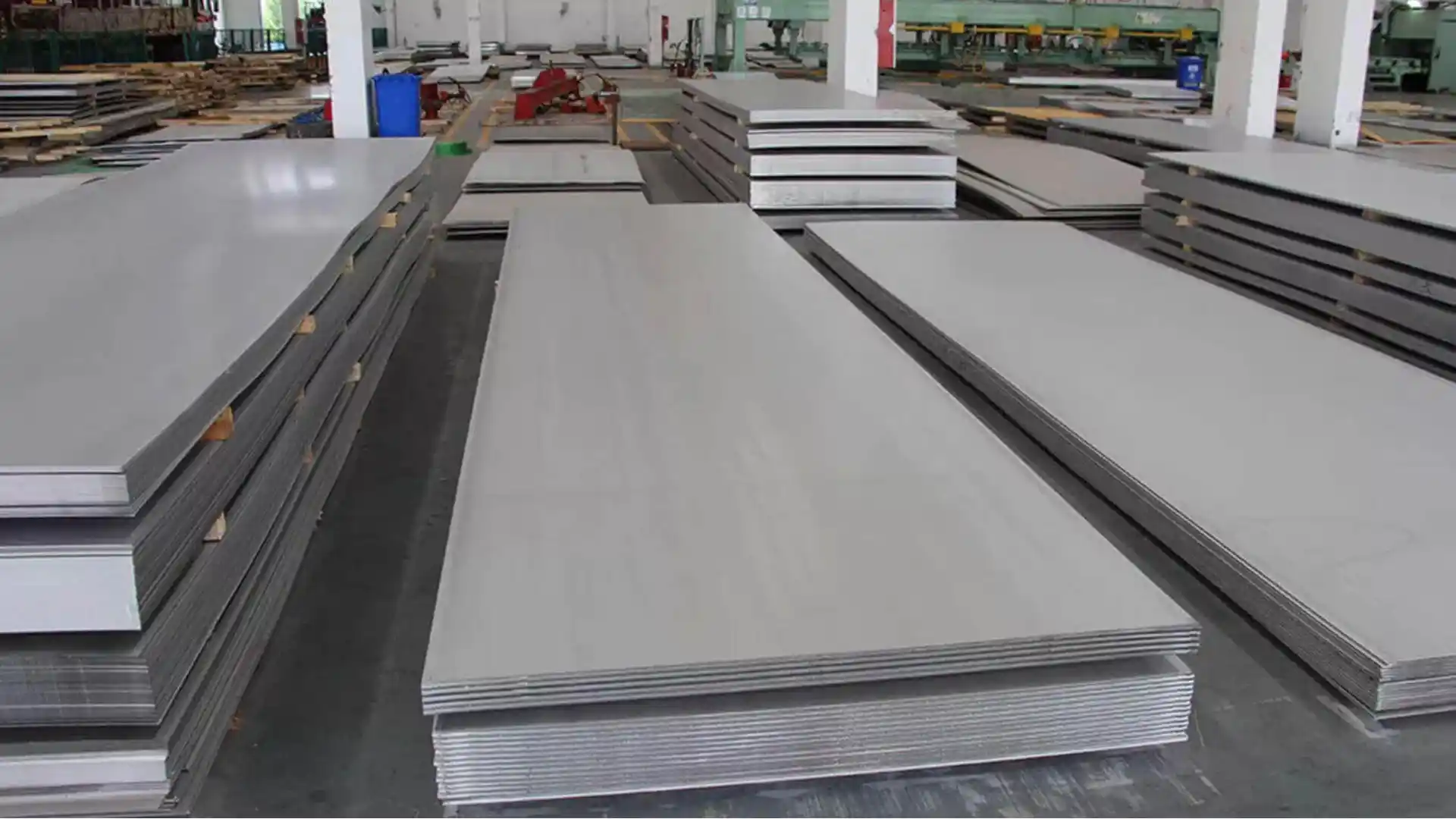

SS 430 Plates

Design Standards: ASTM A240, ASME SA240, EN 10088-2

Material Grade: Stainless Steel 430 (UNS S43000)

Alloy Category: Ferritic Stainless Steel (Non-Hardenable)

Thickness Range: 0.3 mm to 50 mm

Surface Finish: 2B, BA (Bright Annealed), No.4, Mirror

Thermal Conductivity: High (Better heat distribution than 300 series)

Magnetic Property: Inherently Magnetic (Ferritic Structure)

Core Applications: Kitchenware, Appliances, Trim, Heat Exchangers

goldenislands.com.sa

SS 430 Plates are non-hardenable ferritic stainless steel plates that combine good corrosion resistance and formability with useful mechanical properties. As a straight chromium grade, SS 430 is one of the most widely used ferritic stainless steels, offering excellent resistance to nitric acid, sulfur gases, and many organic acids. These plates are particularly noted for their aesthetic versatility, as they can be polished to a high luster, making them the industry standard for decorative trim and consumer appliance surfaces where a combination of durability and visual appeal is required.

Manufactured to meet ASTM A240 and ASME SA240 specifications, SS 430 plates exhibit superior thermal conductivity compared to austenitic grades like SS 304, which makes them highly efficient for use in heat exchangers and combustion chambers. While they are magnetic and not as resistant to pitting as the nickel-bearing 300-series, they provide exceptional resistance to stress corrosion cracking. Whether utilized in architectural interiors, automotive trim, or industrial kitchen equipment, our SS 430 plates provide a high-quality, cost-effective stainless solution for environments with moderate corrosive exposure.

SS 430 Plates Features

» Excellent Corrosion Resistance: Provides high resistance to nitric acid, sulfur gases, and various organic acids, making it ideal for chemical and food processing.
» Superior Thermal Conductivity: Offers higher thermal conductivity than austenitic stainless steels (like 304), allowing for efficient heat distribution in appliances and exchangers.
» Resistance to Stress Corrosion: As a ferritic grade, SS 430 is highly resistant to chloride-induced stress corrosion cracking, a common failure point for 300-series alloys.
» High Aesthetic Appeal: Easily polished to a bright, mirror-like finish (BA), making it the preferred choice for architectural trim and premium kitchen appliances.
» Good Oxidation Resistance: Capable of resisting oxidation in intermittent service up to 870°C (1598°F) and in continuous service up to 815°C (1499°F).
» Cost-Effective Solution: Because it contains no nickel or molybdenum, it is significantly more economical than Grade 304 while still providing excellent stainless properties.
» Magnetic Characteristics: Its ferritic structure makes it inherently magnetic, which is useful for induction-compatible cookware and magnetic separation applications.
» Durable Formability: Can be easily bent, drawn, and formed into various shapes, though it possesses lower work-hardening rates compared to austenitic grades.

SS 430 Plates Specification

Standard Specs

ASTM: A240 / A240M
ASME: SA240 / SA240M
UNS Number: S43000
Werkstoff No: 1.4016

Chemical Profile

Chromium (Cr): 16.0% – 18.0%
Nickel (Ni): 0.75% Max
Manganese (Mn): 1.0% Max
Carbon (C): 0.12% Max

Mechanical Data

Tensile Strength: 450 MPa (Min)
Yield Strength: 205 MPa (Min)
Elongation: 22% (Min)
Hardness: 183 Brinell Max

Size Range

Thickness: 0.3mm to 50mm
Width: 1000mm / 1219mm / 1500mm
Length: 2000mm to 6000mm
Forms: Plates, Coils, Foil, Shim Sheet

Surface Finishes

Common: 2B (Cold Rolled), No.1 (Hot Rolled)
Reflective: BA (Bright Annealed), No.8 Mirror
Textured: No.4 (Brushed), Hairline, Scotch Brite
Coating: Easy-peel PVC, Laser Film

Physical Data

Density: 7.74 g/cm³
Magnetic: Yes (Strongly Magnetic)
Thermal Cond: 26.1 W/m.K (at 100°C)
Melting Range: 1425°C – 1510°C

SS 430 Plates Detailed Specifications

Property	Specification
Specifications	ASTM A240 / ASME SA240
Width	1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness	Min: 0.4mm Max: 6.0mm
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 430 Plates Chemical Composition

Specifications	ASTM A240 / ASME SA240
Width	1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness	Min: 0.4mm Max: 6.0mm
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 430 Plates Mechanical Properties

Element	Density	Tensile Strength	Yield Strength (0.2%Offset)	Elongation	Hardness
SS 430	7.8 g/cm3	483	310	22	Rockwell B (HR B)- 88 / Brinell (HB)- 0.5t

SS 430 Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	EN
SS 430	1.4016	S43000	SUS 430	-	-
