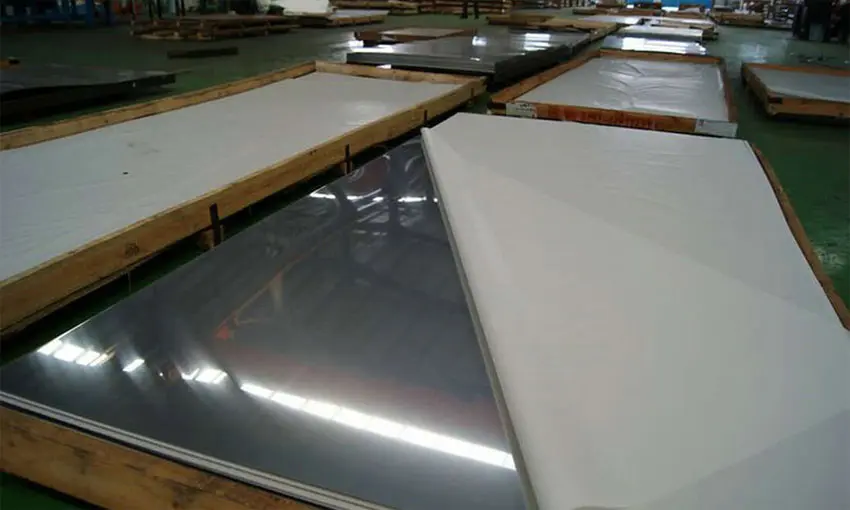

SS 317/ 317L Plates

Design Standards: ASTM A240, ASME SA240, EN 10088-2

Material Grade: SS 317 / 317L (UNS S31700 / S31703)

Enhanced Chemistry: Higher Molybdenum (3-4%) for Acid Resistance

Thickness Range: 0.5 mm to 100 mm

Surface Finish: No.1 (HRAP), 2B, BA, No.4, Satin finish

Processing: Plasma Cutting, Waterjet, Laser, Machine Cut

Testing: Pitting Resistance Test, PMI, UT, IGC Test

Primary Industry: Pulp & Paper, Flue Gas Desulfurization (FGD)

goldenislands.com.sa

SS 317/317L Plates represent a significant upgrade in corrosion performance over the standard 316 series, primarily due to their increased Molybdenum content (3.0% to 4.0%). This high-alloy composition provides exceptional resistance to chemical attack, particularly in environments containing sulfuric, acetic, formic, and tartaric acids. The 317L variant is a low-carbon version (0.03% max) that provides immunity to sensitization during welding, ensuring that the plates maintain their structural integrity and superior corrosion resistance in the heat-affected zones of large-scale fabrications.

Manufactured in strict accordance with ASTM A240 and ASME SA240, these plates are the industry standard for the most demanding "severe service" applications, such as pulp and paper manufacturing, flue gas desulfurization (FGD) systems, and chemical processing plants. SS 317/317L plates offer higher tensile and creep strength at elevated temperatures compared to conventional stainless steels. Their ability to resist pitting and crevice corrosion in high-chloride process streams makes them an indispensable solution for offshore oil and gas equipment and advanced pharmaceutical reactors where standard grades might fail.

SS 317/ 317L Plates Features

» Advanced Acid Resistance: Significantly higher resistance to sulfuric, acetic, formic, and citric acids compared to standard 316L due to increased molybdenum levels.
» Low Carbon Immunity: The 317L variant (0.03% max carbon) prevents sensitization and intergranular corrosion, ensuring structural integrity in welded assemblies.
» Enhanced Pitting Protection: Offers a higher Pitting Resistance Equivalent Number (PREN) than Grade 316, making it ideal for high-chloride process environments.
» High-Temperature Durability: Provides superior creep, stress-to-rupture, and tensile strength at elevated temperatures, suitable for heavy industrial thermal processing.
» Pulp and Paper Specialist: Specifically designed to withstand the aggressive chemical bleaching agents used in paper mills and flue gas desulfurization (FGD) systems.
» Excellent Ductility: Despite its high alloy content, it maintains excellent formability and can be easily cold-worked into various industrial components.
» Cryogenic Stability: Retains its toughness and non-magnetic properties at sub-zero temperatures, suitable for specialized chemical storage.
» Surface Finish Options: Available in a variety of finishes, including 2B for industrial tanks and No.4/Satin for pharmaceutical and clean-room applications.

SS 317/ 317L Plates Specification

Standard Specs

ASTM: A240 / A240M
ASME: SA240 / SA240M
UNS: S31700 / S31703 (317L)
Werkstoff No: 1.4449 / 1.4438

Chemical Profile

Molybdenum (Mo): 3.0% – 4.0%
Chromium (Cr): 18.0% – 20.0%
Nickel (Ni): 11.0% – 15.0%
Carbon (C): 0.03% Max (for 317L)

Mechanical Data

Tensile Strength: 515 MPa (Min)
Yield Strength: 205 MPa (Min)
Elongation: 35% (Min)
Hardness: 217 Brinell Max

Size & Range

Thickness: 0.5mm to 100mm
Width: 1000mm to 2500mm
Length: 2000mm to 12000mm
Supply: Sheets, Coils, Plates

Finish Options

Hot Rolled: No. 1 (Annealed/Pickled)
Cold Rolled: 2B, BA (Bright)
Edge Finish: Mill Edge or Slit Edge
Polished: No. 4 brushed available

Services

Cutting: CNC Plasma, Laser, Waterjet
Testing: PMI, Ultrasonic, Pitting Test
Cert: EN 10204 3.1 & 3.2 MTC
Packing: Custom Export Packaging

SS 317/ 317L Plates Detailed Specifications

Specifications	ASTM A240 / ASME SA240
Width	1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness	0.1mm to 12 mm Thk
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 317/ 317L Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 317	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 - 20.00	3.00 - 4.00	11.00 - 15.00	57.845 min
SS 317L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 - 20.00	3.00 - 4.00	11.00 - 15.00	57.89 min

SS 317/ 317L Plates Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

SS 317/ 317L Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
SS 317	1.4449	S31700	SUS 317	-
SS 317L	1.4438	S31703	SUS 317L	X2CrNiMo18-15-4
