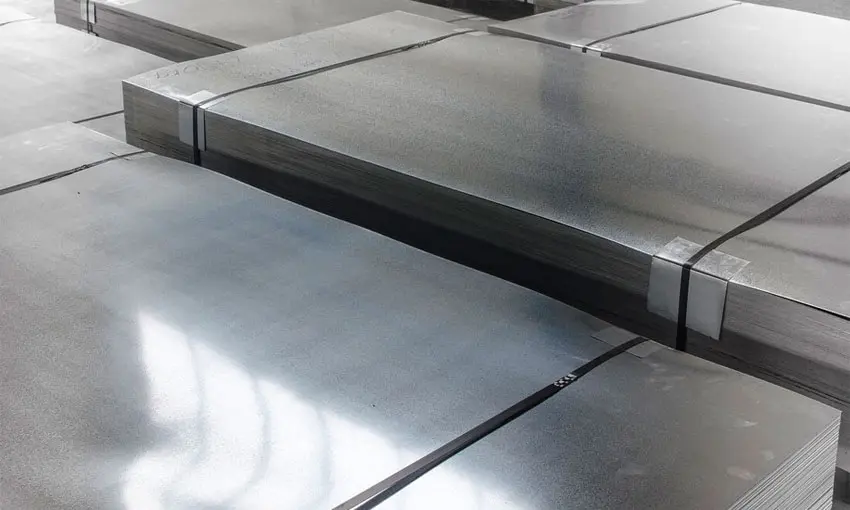

SS 310 Plates

Design Standards: ASTM A240, ASME SA240, EN 10088-2

Material Grade: Stainless Steel 310 (UNS S31000)

Temperature Limit: Resistant to Oxidation up to 1150°C

Thickness Range: 0.5 mm to 150 mm

Surface Finish: Hot Rolled (No.1), 2B, BA, No.4, Satin

Supply Conditions: Annealed, Quenched, Tempered

Testing Services: HIC Test, IGC Test, PMI, Ultrasonic

Typical Applications: Furnace Parts, Kilns, Heat Exchangers

goldenislands.com.sa

SS 310 Plates are premium high-temperature austenitic stainless steel plates designed for use in environments where exceptional resistance to heat and oxidation is paramount. Containing a high chromium content (25%) and substantial nickel (20%), Grade 310 provides superior creep strength and toughness at elevated temperatures compared to standard 304 or 316 grades. These plates are specifically engineered to withstand oxidation in continuous service at temperatures up to 1150°C, provided reducing sulfur gases are not present, making them the industry standard for thermal processing equipment.

Our SS 310 range is manufactured in compliance with ASTM A240 and ASME SA240, ensuring high-quality performance in demanding applications such as furnace components, kiln liners, and radiant tubes. Beyond its heat-resistant properties, SS 310 maintains excellent cryogenic toughness and low magnetic permeability, even at extreme sub-zero temperatures. Whether you require standard sheets for heat exchangers or heavy-gauge plates for high-heat industrial boilers, our 310 series provides the structural stability and chemical resistance required to prevent scaling and embrittlement in the most aggressive thermal environments.

SS 310 Plates Features

» Superior Oxidation Resistance: The high chromium (25%) and nickel (20%) content provides exceptional resistance to oxidation in continuous service at temperatures up to 1150°C.
» High Creep Strength: Engineered to maintain high tensile and yield strength under prolonged exposure to elevated temperatures, preventing deformation in structural furnace components.
» Corrosion Resistance in Hot Media: Offers excellent resistance to carburizing and moderate-sulfidizing environments, making it ideal for thermal processing and chemical plants.
» Cryogenic Versatility: Unlike many heat-resistant alloys, SS 310 retains its toughness and ductility at cryogenic temperatures down to -268°C, featuring low magnetic permeability.
» Excellent Weldability: Can be welded using most standard fusion processes (SMAW, TIG, MIG), ensuring structural integrity in large-scale fabrications like kilns and boilers.
» Thermal Fatigue Resistance: Designed to withstand frequent thermal cycling without cracking or scaling, significantly extending the service life of heat treatment equipment.
» Good Machinability: While tougher than standard 304, SS 310 can be effectively machined and formed using specialized tooling and heavy-duty industrial equipment.
» Scaling Resistance: Provides a stable, protective oxide layer that resists spalling, even during rapid temperature changes, protecting the base metal from environmental degradation.

SS 310 Plates Specification

Specifications

ASTM/ASME: A240 / SA240
UNS Number: S31000 / S31008 (310S)
Werkstoff No: 1.4841 / 1.4845
Compliance: NACE MR0175 / ISO 15156

Chemical Profile

Chromium (Cr): 24.0% – 26.0%
Nickel (Ni): 19.0% – 22.0%
Manganese (Mn): 2.0% Max
Silicon (Si): 1.50% Max

Mechanical Data

Tensile Strength: 515 MPa (Min)
Yield Strength: 205 MPa (Min)
Elongation: 40% (Min)
Hardness: 95 HRB Max

Dimensions

Thickness: 0.5mm to 150mm
Width: 1000mm to 3000mm
Length: 2000mm to 12000mm
Forms: Plates, Sheets, Coils, Foils

Thermal Rating

Intermittent Temp: 1035°C
Continuous Temp: 1150°C
Melting Range: 1400°C – 1450°C
Specific Heat: 500 J/kg.K (0-100°C)

Finish & Supply

Finishing: No.1, 2B, BA, No.4, Mirror
Cutting: Plasma, Laser, Waterjet
Edge: Mill Edge, Slit Edge
Packaging: Seaworthy Export Packing

SS 310 Plates Detailed Specifications

Specifications	ASTM A240 / ASME SA240
Width	1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness	0.1mm to 12 mm Thk
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 310 Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 310	0.015 max	2.0 max	0.15 max	0.020 max	0.015 max	24.00 – 26.00	0.10 max	19.00 – 21.00	54.7 min

SS 310 Plates Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1402 °C (2555 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40 %

SS 310 Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
