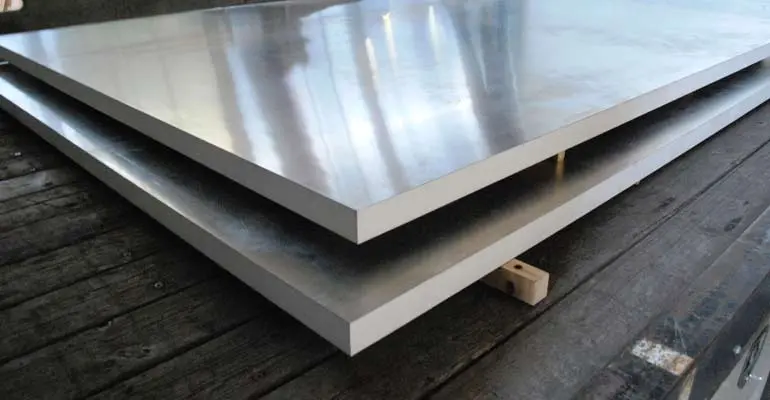

Nickel 201 B162 Plate

Material Grade: Nickel 201 (UNS N02201)

Standard Specification: ASTM B162 / ASME SB162

Carbon Chemistry: Low Carbon (Max 0.02%) for High-Temp

Thermal Stability: Resistant to Graphitization > 315°C

Maximum Service Temp: Up to 600°C (1100°F)

Chemical Advantage: Superior Resistance to Caustic Soda

Mechanical Property: Excellent Ductility & Lower Hardness

Key Applications: Caustic Evaporators & Thermal Processing

goldenislands.com.sa

Nickel 201 (UNS N02201) Plates are the low-carbon modification of Nickel 200, specifically engineered for applications where exposure to temperatures exceeding 315°C (600°F) is required. Produced under the ASTM B162 specification, Nickel 201 limits carbon content to a maximum of 0.02%. This critical adjustment prevents the formation of intergranular graphite (graphitization) at elevated temperatures, which would otherwise lead to severe embrittlement and material failure in standard nickel grades. As a commercially pure wrought alloy, it retains the exceptional corrosion resistance of its counterpart while providing enhanced thermal stability up to 600°C (1100°F).

The primary industrial advantage of ASTM B162 Nickel 201 is its unmatched performance in high-temperature caustic environments. It is the definitive material of choice for caustic soda evaporators and chemical reactors where purity and structural integrity are paramount. Beyond its chemical resistance, Nickel 201 is slightly softer than Nickel 200, offering superior ductility that facilitates complex cold-forming and deep-drawing operations. Its high thermal and electrical conductivity, combined with low magnetostriction, makes it highly effective for electronic components, aerospace heat shields, laboratory equipment, and synthetic fiber production. By utilizing Nickel 201, engineers can ensure long-term reliability in thermal processing environments that would compromise other metallic materials.

Nickel 201 B162 Plate Features

» Low-Carbon Stability: With a carbon content limited to 0.02% max, it eliminates the risk of intergranular embrittlement caused by graphitization at high temperatures.
» High-Temperature Reliability: Ideally suited for continuous service in environments exceeding 315°C (600°F), maintaining structural integrity up to 600°C (1100°F).
» Exceptional Caustic Resistance: Offers the highest degree of resistance to caustic alkalis, particularly sodium hydroxide and potassium hydroxide, across all concentrations.
» Enhanced Ductility: Being slightly softer than Nickel 200, it provides superior workability for complex fabrication, deep drawing, and spinning processes.
» Superior Thermal Conductivity: High heat transfer efficiency makes it an excellent choice for heat exchangers and high-temperature processing vessels.
» Resistance to Halogens: Demonstrates outstanding resistance to dry fluorine and is widely used in the handling of chlorine and hydrogen chloride at elevated temperatures.
» Vacuum Compatibility: Maintains low vapor pressure and low gas content, ensuring clean performance in high-vacuum and electronic applications.
» Ease of Welding: Can be readily welded using standard methods like GTAW and GMAW, provided the appropriate low-carbon filler metals are utilized.

Nickel 201 B162 Plate Specification

Standards

ASTM Standard: B162
ASME Standard: SB162
UNS Number: N02201
WNR Number: 2.4061 / 2.4068

Low-Carbon Chemistry

Nickel (Ni): 99.0% Min
Carbon (C): 0.02% Max
Iron (Fe): 0.40% Max
Silicon (Si): 0.35% Max

Mechanical Data

Yield Strength: 83 MPa (Min)
Tensile Strength: 345 MPa (Min)
Elongation: 40% (Min)
Hardness: 65 HRB (Typical)

Thermal Properties

Max Temp: 600°C (1100°F)
Melting Point: 1435 - 1446°C
Thermal Cond: 79.3 W/m·K
Feature: Anti-Graphitization

Size Range

Thickness: 0.5 mm to 50 mm
Width: Up to 2500 mm
Length: Up to 6000 mm
Finish: No.1 / 2B / BA

Certifications

Certification: EN 10204 3.1 / 3.2
Verification: 100% PMI Tested
Compliance: NACE MR0103 / 0175
Testing: IGCT / Ultrasonic

Nickel 201 B162 Plate Detailed Specifications

Property	Specification
Specification	ASTM B162 / ASME SB162
Width	1000mm - 3000mm
Thickness	3mm - 100mm
Length	2000mm - 12000mm
Supply Condition	Hot-Rolled, Cold-Rolled, Annealed, and as per customer requirements.
Impact Tested	-196°C
Process of Manufacturing	Hot-Rolled, Cold-Rolled, Annealing, Pickling, and Passivation

Nickel 201 B162 Plate Chemical Composition

Element	Composition %
Nickel (Ni)	99.0 Min
Iron (Fe)	0.40 Max
Copper (Cu)	0.25 Max
Carbon (C)	0.02 Max
Manganese (Mn)	0.35 Max
Silicon (Si)	0.35 Max
Sulfur (S)	0.01 Max
Phosphorus (P)	0.02 Max

Nickel 201 B162 Plate Mechanical Properties

Property	Value
Tensile Strength	40,000 – 70,000 psi (275 – 485 MPa)
Yield Strength	25,000 psi (170 MPa)
Elongation	45% (in 8 inches / 200 mm)
Hardness	Rockwell B: 60 – 80
Modulus of Elasticity	20,000,000 psi (137,900 MPa)
Poisson's Ratio	0.31
Shear Modulus	7,700,000 psi (53,100 MPa)

Nickel 201 B162 Plate Equivalent Grades

Standard	ASTM B162	ASME SB162	DIN 17750	BS 3076	ISO 9723	JIS H 4600
Equivalent Grade	UNS N02201	UNS N02201	Ni 99.2	Ni 201	Ni 201	Ni 201
