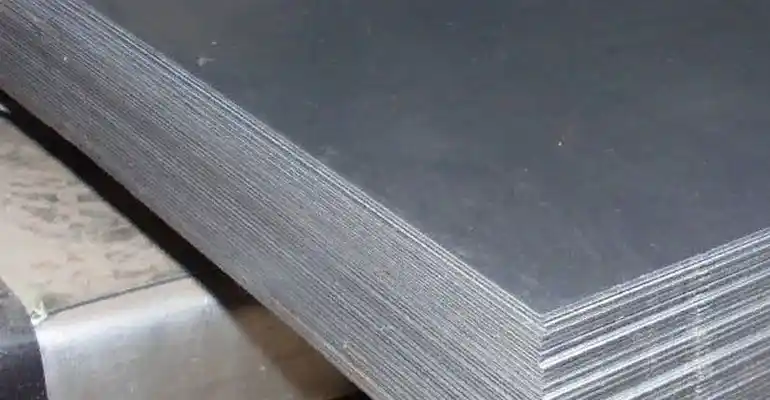

SA 516 GR.60N NACE + HIC Plates

Design Standards: ASME SA516, ASTM A516 (Latest Edition)

HIC Resistance: Tested to NACE TM0284 (Solution A/B)

Material Grade: Grade 60N (Normalized & Killed)

Sour Service Compliance: NACE MR0175 / ISO 15156 & MR0103

Internal Purity: Ultra-Low Sulfur (S ≤ 0.002%) & Phosphorus

Testing Protocols: CLR, CTR, STR Reporting Included

Thickness Range: 6 mm to 150 mm

Core Applications: LPG Storage, Amine Scrubber, Wet H2S Service

goldenislands.com.sa

SA 516 GR.60N NACE + HIC Plates are specialized pressure vessel steels engineered for the most volatile "Wet $H_{2}S$" environments. While standard Grade 60 provides excellent notch toughness through normalization, the addition of HIC (Hydrogen-Induced Cracking) resistance ensures the material can withstand the internal pressure caused by hydrogen atom recombination. These plates are manufactured using a Clean Steel Practice, involving ultra-low sulfur content and calcium treatment for inclusion shape control, which prevents the formation of elongated manganese sulfides that typically serve as initiation sites for cracking.

To guarantee performance in sour service, our plates are tested in accordance with NACE TM0284. This involves rigorous immersion testing where the material's resistance is quantified through Crack Length Ratio (CLR), Crack Thickness Ratio (CTR), and Crack Sensitivity Ratio (CSR) reporting. Compliant with both NACE MR0175 and MR0103, these plates are essential for critical infrastructure in the petrochemical and gas industries, such as amine absorbers, gas scrubbers, and flare drums, where preventing catastrophic brittle failure is the highest priority.

SA 516 GR.60N NACE + HIC Plates Features

» Verified HIC Resistance: Fully tested according to NACE TM0284, ensuring the material remains free from internal hydrogen-induced blistering and stepwise cracking in sour environments.
» Ultra-Low Sulfur Content: Manufactured with extremely low sulfur levels (typically ≤ 0.002%) to minimize non-metallic inclusions, which are the primary sites for hydrogen crack initiation.
» Calcium Treatment & Shape Control: Utilizes advanced calcium treatment to ensure inclusions are spherical and dispersed, rather than elongated, significantly improving through-thickness ductility.
» Normalized Microstructure: Heat-treated to produce a fine, uniform grain structure that provides the necessary notch toughness and impact resistance for high-pressure safety.
» Stringent Crack Ratio Limits: Guaranteed performance with strict reporting of Crack Length Ratio (CLR), Crack Thickness Ratio (CTR), and Crack Sensitivity Ratio (CSR) as per project specifications.
» Vacuum Degassing: The steel undergoes intense vacuum degassing to remove dissolved gases like oxygen, hydrogen, and nitrogen, ensuring a highly clean and sound internal plate structure.
» NACE MR0175/ISO 15156 Compliance: Certified for use in H₂S-containing environments, providing total resistance against Sulfide Stress Cracking (SSC).
» Enhanced Mechanical Integrity: Maintains high yield strength and elongation properties even after the rigorous thermal cycles associated with vessel fabrication and welding.

SA 516 GR.60N NACE + HIC Plates Specification

Standard Specs

ASME: SA 516 / SA 516M
ASTM: A 516 / A 516M
Compliance: NACE MR0175 / ISO 15156
HIC Test: NACE TM0284

Chemical Profile

Sulfur (S): 0.002% Max
Phosphorus (P): 0.010% Max
Manganese (Mn): 0.60% – 1.05%
Treatment: Calcium (Ca) Treated

Mechanical Data

Tensile Strength: 415 – 550 MPa
Yield Strength: 220 MPa (Min)
Elongation: 25% (Min)
Grain Practice: Fine Grain / Killed

Size Range

Thickness: 6mm to 150mm
Width: Up to 3500mm
Length: Up to 12000mm
Condition: Normalized (N)

Crack Resistance

CLR (Crack Length): ≤ 15%
CTR (Crack Thickness): ≤ 5%
CSR (Crack Sens.): ≤ 2%
Solution: A or B (as per NACE)

Testing & Certs

Impact: Charpy V-Notch (-46°C)
NDT: UT (SA 578 Level B/C)
Cert: EN 10204 3.1 & 3.2
Service: Wet H2S / Sour Gas

SA 516 GR.60N NACE + HIC Plates Detailed Specifications

Property	Specification
Grade	ASME SA 516 GR.60N Boiler and Pressure Vessel Steel Plates
Width	1000mm-4500mm
Thickness	5mm-150mm
Length	3000mm-18000mm
Supply Condition	As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested	52° C
Tempering	Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications	Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing	Hot-Rolled (HR)

SA 516 GR.60N NACE + HIC Plates Chemical Composition

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.20	0.4	0.95/1.50	0.025	0.025	0.02	0.3	0.3	0.3	0.08	0.01	0.03	0.02

SA 516 GR.60N NACE + HIC Plates Mechanical Properties

Tensile strength	Yield strength	Elongation min, % 200 mm (8 in)	Elongation min, % 50 mm (2 in)
415-550 MPa	250 MPa	21	25

SA 516 GR.60N NACE + HIC Plates Equivalent Grades

British Standard	European Norm	ASTM/ASME	DIN
BS1501-161-430A	EN10028 P265GH	A/SA516 - Grade 60	DIN 17155 HII
