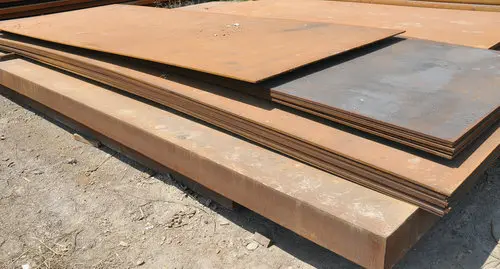

ASTM A588 GR.A Plates

ASTM A588 GR.A Plates
Material Grade: ASTM A588 Grade A / ASME SA588
Material Type: HSLA Weathering Structural Steel
Structural Strength: 50,000 psi (345 MPa) Minimum Yield
Corrosion Rating: 4x Resistance of Standard Carbon Steel
Surface Finish: Self-Protecting Weathered Patina
Environmental Advantage: Zero Painting Required (Eco-Friendly)
Thickness Range: 5.0 mm to 100 mm
Primary Industries: Bridge Engineering, Railcars, & Structural Frames
goldenislands.com.sa

ASTM A588 Grade A Plates are high-strength, low-alloy (HSLA) structural steels specifically formulated for applications requiring superior atmospheric corrosion resistance. Under the ASTM A588 specification, Grade A is engineered to provide a minimum yield strength of 50,000 psi (345 MPa), making it a robust choice for load-bearing structures. What sets this grade apart is its specialized chemical composition, which includes elements like copper, chromium, and nickel. These elements allow the steel to develop a protective, self-healing oxide patina when exposed to the environment, effectively shielding the underlying material from moisture and oxygen and significantly extending the service life of the structure.

The technical utility of A588 Grade A is most evident in large-scale infrastructure projects where the elimination of maintenance costs is a priority. Because the material does not require painting or external coatings, it offers a sustainable, maintenance-free solution that reduces the environmental impact and long-term financial burden of corrosion management. It is widely utilized in the construction of welded bridges, highway structures, transmission towers, and high-rise buildings. By choosing ASTM A588 Grade A, engineers benefit from a material that combines structural high-performance with an organic, industrial aesthetic that matures and deepens in color over time, seamlessly integrating into both urban and natural landscapes.



ASTM A588 GR.A Plates Features

  • » High Strength Structural Performance: Delivers a minimum yield strength of 50,000 psi (345 MPa), providing high load-bearing capacity while allowing for reduced section sizes and weight.
  • » Enhanced Atmospheric Corrosion Resistance: Offers approximately four times the corrosion resistance of standard carbon structural steel, effectively self-protecting against humidity and rain.
  • » Protective Oxide Patina: Naturally develops a dense, adherent "rust" layer upon exposure to the elements, which acts as a regenerative barrier to prevent deep-seated material decay.
  • » Maintenance-Free Longevity: Eliminates the need for costly abrasive blasting, painting, and periodic recoating, resulting in substantial savings over the structure's lifecycle.
  • » Superior Weldability: Specifically micro-alloyed to ensure excellent joining characteristics using standard welding procedures, critical for heavy structural bridge girders.
  • » Optimized Notch Toughness: Engineered to maintain high structural integrity and resist brittle fracture, ensuring safety in dynamic environments and varying temperature ranges.
  • » Aesthetic and Organic Finish: Features an evolving earthy texture and deep brown color that matures over time, making it a favorite for architectural and landscape integration.
  • » Environmental Sustainability: Being 100% recyclable and requiring no VOC-heavy coatings, it is an ideal choice for environmentally conscious construction and "Green" infrastructure.

ASTM A588 GR.A Plates Specification

Standards

  • ASTM: A588 Grade A
  • ASME: SA588
  • Type: HSLA Weathering Steel
  • Condition: Hot Rolled / Normalized

Chemistry

  • Carbon (C): 0.19% Max
  • Manganese (Mn): 0.80% - 1.25%
  • Chromium (Cr): 0.40% - 0.65%
  • Silicon (Si): 0.30% - 0.65%

Strength

  • Yield Strength: 345 MPa (Min)
  • Tensile Strength: 485 MPa (Min)
  • Elongation: 21% (Min)
  • Corrosion Index: 6.0 or Higher

Processing

  • Welding: Highly Weldable
  • Cutting: Laser / Oxy-Fuel / Plasma
  • Forming: Cold & Hot Forming
  • Surface: Natural Mill Finish

Availability

  • Thickness: 5 mm to 100 mm
  • Width: Up to 3000 mm
  • Length: Up to 12000 mm
  • Custom: Profile Cutting Available

Quality

  • MTC: EN 10204 3.1 / 3.2
  • Certification: ISO / CE Compliant
  • Impact: Charpy Test Available
  • Traceability: 100% Mill Traceable

ASTM A588 GR.A Plates Detailed Specifications

Property Specification
Specifications ASTM 588 GR.A
Width from 750mm to 1500mm
Length upto 12,000mm
Thickness from 0.8 mm to 50mm
Type Weathering Steel / Corten Steel

ASTM A588 GR.A Plates Chemical Composition

Grade C Mn Cr Si N Su Cu Ph Ni
ASTM A588 GR.A 0.19 Max 0.80-1.25 0.40-0.65 0.30-0.65 0.010 0.040 0.25-0.40 0.05 0.05

ASTM A588 GR.A Plates Mechanical Properties

Grade Thickness Yield Strength
ReH[N/mm2]transv.min
TensileStrength
Rm[N/mm2]transv
ASTM A588 GR.A 0mm-100mm 340 KPa 480 KPa
102mm-127mm 320 KPa 460 KPa
127mm-203mm 290 KPa 430 KPa
