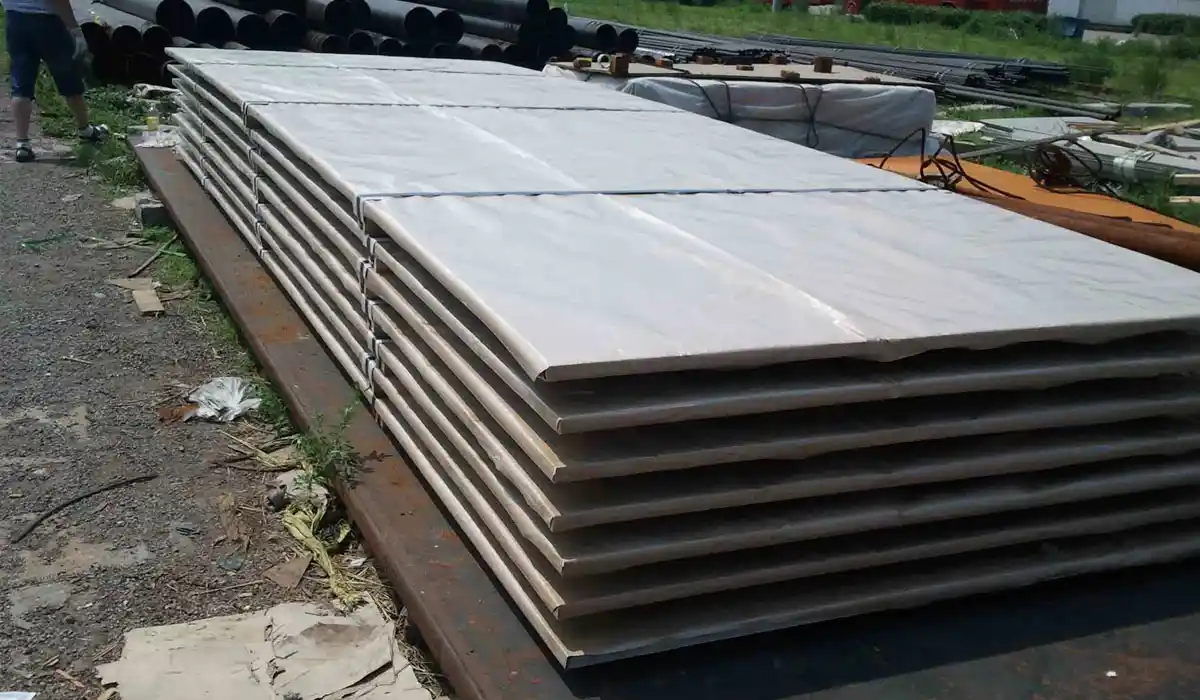

SS 420 Plates

SS 420 Plates
Design Standards: ASTM A240, ASME SA240, EN 10088-2
Material Grade: Stainless Steel 420 (UNS S42000)
Alloy Category: High-Carbon Martensitic Stainless Steel
Hardness Capability: Up to 50 HRC (After Heat Treatment)
Thickness Range: 0.5 mm to 60 mm
Surface Finish: No.1 (HRAP), 2B, BA, Ground & Polished
Process Capabilities: Hardening, Tempering, CNC Machining, Grinding
Core Applications: Surgical Tools, Industrial Knives, Shear Blades
goldenislands.com.sa

SS 420 Plates are high-carbon martensitic stainless steel plates that offer significantly higher hardness and strength compared to Grade 410. Often referred to as "tool steel" stainless, Grade 420 contains a minimum of 12% chromium, which provides sufficient corrosion resistance for industrial applications, but its standout feature is its exceptional hardenability. When subjected to quenching and tempering, these plates can reach a Rockwell hardness of up to 50 HRC, making them the primary choice for components subjected to high abrasive wear and mechanical stress.

Manufactured in compliance with ASTM A240 and ASME SA240, SS 420 plates are best utilized in the hardened and polished condition to achieve maximum corrosion resistance. They are highly effective against fresh water, alkalis, air, and certain food acids, which is why they are a staple in the production of surgical instruments, industrial shear blades, and high-precision molds. While the material is less ductile than austenitic grades, it offers a unique combination of stainless properties and high-strength mechanical performance, ensuring long-term edge retention and structural stability in demanding manufacturing environments.



SS 420 Plates Features

  • » Exceptional Hardenability: Features a higher carbon content than Grade 410, allowing it to be heat-treated to a Rockwell hardness of up to 50 HRC for extreme wear resistance.
  • » Superior Edge Retention: The high hardness makes these plates ideal for industrial cutting tools, shear blades, and cutlery where maintaining a sharp edge is critical.
  • » Optimized Corrosion Resistance: Provides maximum resistance to fresh water, steam, and mild acids when the surface is fully hardened and ground to a polished finish.
  • » High Tensile Strength: Offers immense structural strength and load-bearing capacity, making it suitable for heavy-duty mechanical parts and pressure-resistant components.
  • » Abrasion & Erosion Resistance: Highly resistant to surface degradation caused by abrasive particles, essential for industrial molds, bushings, and pump internals.
  • » Thermal Stability: Capable of maintaining its mechanical properties and resisting scaling in environments with temperatures reaching up to 650°C.
  • » Magnetic Integrity: Being a martensitic grade, it is strongly magnetic in all conditions, which is advantageous for specialized electronic and mechanical applications.
  • » Precision Machinability: While tough, the material can be effectively machined in its annealed state using standard carbide tooling before the final hardening process.

SS 420 Plates Specification

Standard Specs

  • ASTM: A240 / A240M
  • ASME: SA240 / SA240M
  • UNS Number: S42000
  • Werkstoff No: 1.4021 / 1.4028

Chemical Profile

  • Chromium (Cr): 12.0% – 14.0%
  • Carbon (C): 0.15% Min (High Carbon)
  • Manganese (Mn): 1.0% Max
  • Silicon (Si): 1.0% Max

Mechanical Data

  • Tensile Strength: 655 MPa (Min)
  • Yield Strength: 345 MPa (Min)
  • Elongation: 15% - 25%
  • Hardness: Up to 50 HRC (Hardened)

Size & Supply

  • Thickness: 0.5mm to 60mm
  • Width: 1000mm to 2000mm
  • Length: 2000mm to 6000mm
  • Forms: Plates, Sheets, Strips, Coils

Surface Options

  • Industrial: No.1 (HRAP), 2B (CR)
  • Polished: BA, No.4, Mirror Finish
  • Protection: PVC / Laser Coating
  • Edges: Slit, Mill, or Laser Cut

Testing & Certs

  • Hardness: Brinell, Rockwell, Vickers
  • NDT: Ultrasonic (UT), Magnetic Particle
  • Cert: EN 10204 3.1 & 3.2 MTC
  • Material: PMI (Positive Material ID)

SS 420 Plates Detailed Specifications

Property Specification
Specifications ASTM A240 / ASME SA240
Width 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness 5mm to 50mm
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 420 Plates Chemical Composition

Grade C Mn Si S P Cr
SS 420 0.15 max 1.00 max 1.00 max 0.03 max 0.04 max 14.0 – 12.0

SS 420 Plates Mechanical Properties

Element Density Tensile Strength Yield Strength (0.2%Offset) Elongation Hardness
SS 420 7.8 g/cm3 MPa – 380 MPa – 170 20 % Rockwell B (HR B)- 88 / Brinell (HB)- 0.5t

SS 420 Plates Equivalent Grades

STANDARD WERKSTOFF NR. UNS
SS 420 2.4660 S42000
