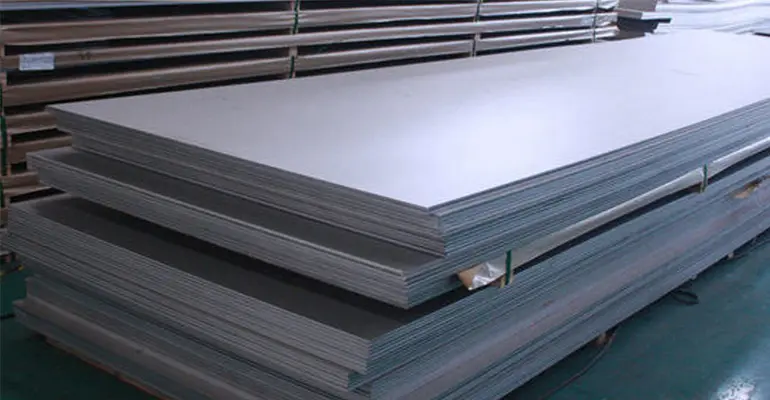

ASME SA 515 GR.60 PLATES

Material Grade: ASME SA 515 Grade 60 / ASTM A515

Material Type: High-Temperature PVQ Carbon Steel

Service Focus: Intermediate & Higher Temperature Service

Structural Strength: Tensile Strength: 415 - 550 MPa (60-80 ksi)

Key Property: Coarse-Grain Structure for Thermal Stability

Fabrication Advantage: Excellent Weldability for Heavy-Duty Boilers

Manufacturing Practice: Silicon-Killed Carbon Steel

Primary Industries: Steam Generation, Refineries, & Thermal Power

goldenislands.com.sa

ASME SA 515 Grade 60 Plates are specialized carbon steel plates designed for intermediate and higher-temperature service in boilers and other pressure vessels. Unlike the SA 516 series, which prioritizes notch toughness for cold environments, SA 515 Gr.60 is engineered to maintain structural stability and resistance to creep in elevated temperature applications. These plates are manufactured using silicon-killed, coarse-grain practice, which provides the thermal endurance necessary for high-heat industrial processes.

The technical utility of SA 515 Grade 60 lies in its tensile strength range of 415–550 MPa (60–80 ksi), offering a reliable and cost-effective solution for steam drums, heat exchangers, and refinery equipment. Its chemical composition is specifically tailored to ensure excellent weldability and ease of fabrication into large-scale welded structures. By adhering to the ASME Boiler and Pressure Vessel Code, SA 515 Grade 60 ensures that high-temperature containment systems operate safely and efficiently, making it a staple material for the power generation and thermal processing industries.

ASME SA 515 GR.60 PLATES Features

» High-Temperature Optimization: Specifically designed to maintain mechanical integrity in intermediate to higher temperature services where standard carbon steels might degrade.
» Coarse-Grain Practice: Manufactured with a coarse-grain structure to provide superior thermal stability and creep resistance compared to fine-grain pressure vessel steels.
» Silicon-Killed Steel: Produced as fully killed steel with a specific silicon content to ensure a uniform chemical structure and better performance at elevated temperatures.
» Reliable Tensile Strength: Offers a tensile range of 415–550 MPa (60–80 ksi), making it a dependable choice for medium-pressure steam and thermal applications.
» Excellent Fabrication Quality: Despite its high-temperature focus, the material remains highly weldable, allowing for the construction of complex boiler shells and vessel components.
» ASME Section II Compliance: Fully meets the stringent requirements of the ASME Boiler and Pressure Vessel Code, ensuring safety for critical industrial heating systems.
» Thermal Fatigue Resistance: Exhibits strong resistance to the stresses caused by thermal cycling, extending the operational lifespan of heat exchangers and steam drums.
» Versatile Dimensional Range: Available in a variety of thicknesses and widths to suit diverse engineering specifications for high-heat industrial containment.

ASME SA 515 GR.60 PLATES Specification

Standards

ASME: SA 515 Grade 60
ASTM: A 515 Grade 60
Common Name: High-Temp PVQ
Steel Type: Silicon-Killed / Coarse Grain

Chemistry

Carbon (C): 0.24% Max
Manganese (Mn): 0.90% Max
Silicon (Si): 0.15% - 0.40%
Phosphorus (P): 0.035% Max

Strength

Tensile Strength: 415 - 550 MPa
Yield Strength: 220 MPa (Min)
Elongation (8in): 21% (Min)
Elongation (2in): 25% (Min)

Processing

Heat Treatment: As Rolled / Stress Relieved
Testing: High-Temp Tensile (Optional)
Welding: Superior Structural Integrity
Stability: Excellent Creep Resistance

Dimensions

Thickness: 6 mm to 200 mm
Width: 1500 mm to 3000 mm
Length: 3000 mm to 12000 mm
Inventory: Extensive Standard Sizes

Quality

MTC: EN 10204 3.1 Certified
Ultrasonic: ASTM A435 / A578
Origin: Tier-1 Mill Source
Compliance: ASME Section II Part A

ASME SA 515 GR.60 PLATES Detailed Specifications

Property	Specification
Grade	ASME SA 515 GR.60 Boiler and Pressure Vessel Steel Plates
Width	1500mm-3000mm
Thickness	3mm-600mm
Length	3000mm-11000mm.
Production	Hot-Rolled (HR)
Heat Treatment	Rolled/Normalised/N+T/QT

ASME SA 515 GR.60 PLATES Chemical Composition

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.18	0.4	0.95/1.50	0.015	0.008	0.02 (Min)	0.3	0.3	0.3	0.08	0.01	0.03	0.02

ASME SA 515 GR.60 PLATES Mechanical Properties

Tensile strength (ksi)	Yield strength (ksi)	Elongation min, % 200 mm (8 in)	Elongation min, % 50 mm (2 in)
485-620 (70-90)	260 (38)	17	21

ASME SA 515 GR.60 PLATES Equivalent Grades

British Standard	European Norm	ASTM/ASME	DIN
BS1501-161-430A	EN10028 P265GH	A/SA515 - Grade 60	DIN 17155 HII
