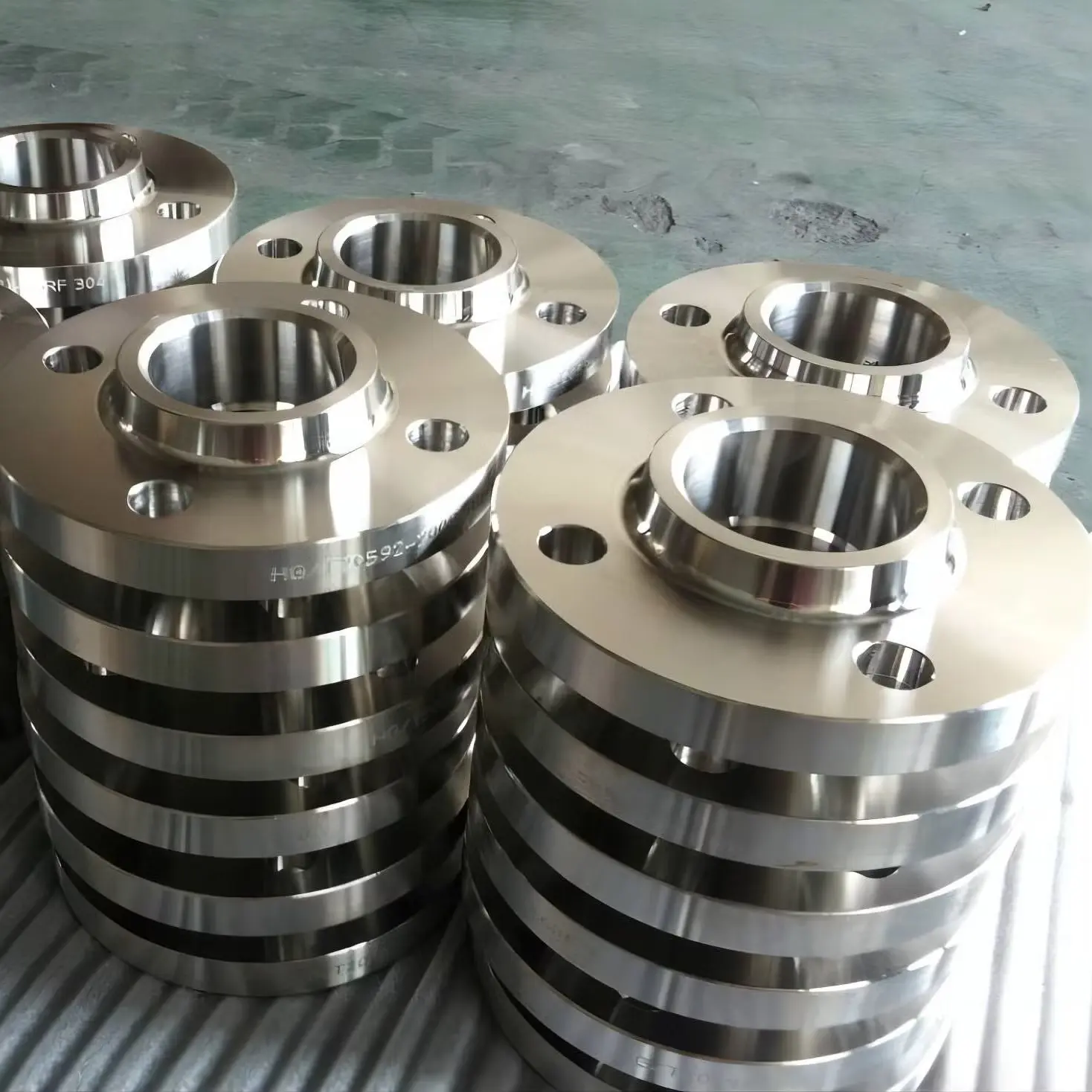

ASTM A182 F446 Stainless Steel Flanges are high-chromium, ferritic alloy piping components manufactured to withstand exceptionally severe high-temperature environments. Produced in strict accordance with the ASTM A182 and ASME SA182 standards, these forged flanges contain a high chromium content of up to 27%. This specific composition creates an incredibly durable ferritic structure that provides outstanding resistance to high-temperature oxidation, sulfidation, and carburization up to 1100 °C (2012 °F) without experiencing scaling or degradation.
Our manufacturing line produces a complete range of ASTM A182 F446 slip-on, weld neck, blind, threaded, and socket weld flanges. Every component is precision machined on CNC lathes to ensure optimal gasket seating across major pressure classes from Class 150 to Class 2500. Because grade 446 is a non-heat-treatable alloy that offers superior resistance to molten copper, lead, and tin corrosion, these high-oxidation forged flanges are the premier choice for soot blowers, kiln linings, furnace parts, flue gas ducts, and metallurgical smelting equipment.
| Specification | Details |
|---|---|
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Grade | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ASME, API, ASTM, BS, DIN, EN, MSS, JIS, AWWA, GOST ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Stainless Steel Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Stainless Steel Blind Flanges, Stainless Steel Table Flanges, Stainless Steel Weld Neck Flanges, Stainless Steel Threaded Flanges, Stainless Steel Slip-On Flanges, Stainless Steel Socketweld Flanges, Stainless Steel Plate Flanges, Stainless Steel Lap Joint Flanges, Stainless Steel Loose Flanges, and Stainless Steel Orifice Flanges. Stainless Steel AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Stainless Steel 446 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Stainless Steel 446 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Stainless Steel 446 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Stainless Steel 446 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Stainless Steel 446 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Stainless Steel 446 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Stainless Steel 446 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Stainless Steel 446 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Stainless Steel 446 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Stainless Steel 446 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |
Stainless Steel 446 Weld Neck Flange
Stainless Steel 446 Lap Joint Flange
Stainless Steel 446 Orifice Flange
Stainless Steel 446 Spectacle Blind Flange
Stainless Steel 446 Ring Flange
Stainless Steel 446 Socket Weld Flange
| Element | Value (%) |
|---|---|
| Carbon (C) | 0.20 max |
| Manganese (Mn) | 1.50 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 23.00 – 27.00 |
| Nickel (Ni) | 0.75 max |
| Nitrogen (N) | 0.10 – 0.25 |
| Phosphorus (P) | 0.040 max |
| Sulfur (S) | 0.030 max |
| Iron (Fe) | Balance |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 550 min |
| Yield Strength (0.2% Offset, MPa) | 275 min |
| Elongation in 2 in. or 50mm (%) | 20 min |
| Reduction of Area (%) | 40 min |
| Hardness (Brinell HBW) | 219 max |
| Hardness (Rockwell B) | 95 HRB max |
