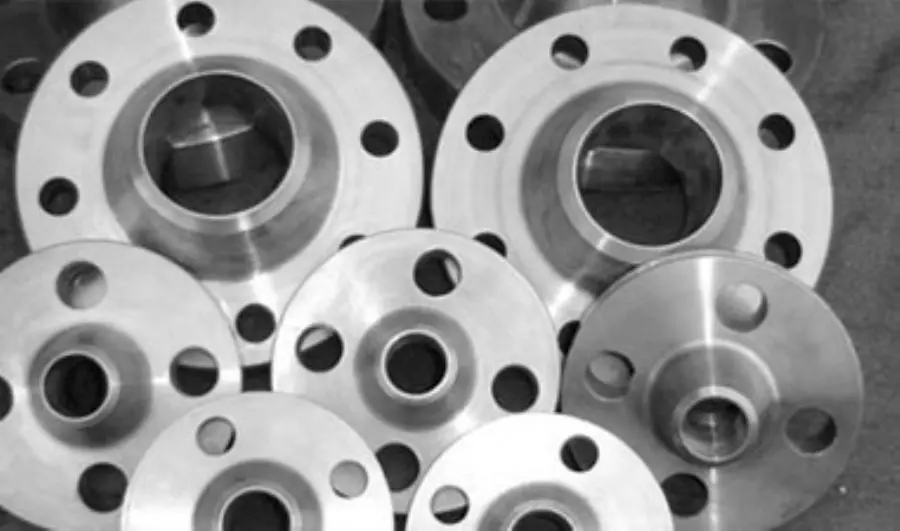

ASTM B564 Incoloy 825 Flanges are manufactured from a nickel-iron-chromium alloy with significant additions of molybdenum, copper, and titanium. Classified under the UNS N08825 designation, these flanges are specifically designed to provide exceptional resistance to many corrosive environments, both oxidizing and reducing. The high nickel content ensures resistance to chloride-ion stress corrosion cracking, while the addition of copper and molybdenum makes the alloy particularly effective against sulfuric and phosphoric acids.
Our Incoloy 825 slip-on, weld neck, blind, and socket weld flanges are produced to meet ASME B16.5 and B16.47 dimensional standards. These components are widely utilized in chemical processing, oil and gas recovery, and acid production industries due to their ability to resist pitting and crevice corrosion. The titanium addition serves to stabilize the alloy against sensitization after welding, ensuring that the forged flanges maintain their integrity in as-welded conditions. Each flange is precision-machined and rigorously tested to ensure a reliable, leak-proof seal in highly demanding and aggressive chemical environments.
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | ASTM B564 Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations ASTM B564 Incoloy 825 Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | ASTM B564 Incoloy 825 Blind Flanges, ASTM B564 Incoloy 825 Table Flanges, ASTM B564 Incoloy 825 Weld Neck Flanges, ASTM B564 Incoloy 825 Threaded Flanges, ASTM B564 Incoloy 825 Slip-On Flanges, ASTM B564 Incoloy 825 Socketweld Flanges, ASTM B564 Incoloy 825 Plate Flanges, ASTM B564 Incoloy 825 Lap Joint Flanges, ASTM B564 Incoloy 825 Loose Flanges, and ASTM B564 Incoloy 825 Orifice Flanges. ASTM B564 Incoloy 825 AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Incoloy 825 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Incoloy 825 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Incoloy 825 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Incoloy 825 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Incoloy 825 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Incoloy 825 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Incoloy 825 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Incoloy 825 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Incoloy 825 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Incoloy 825 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |
Incoloy 825 Weld Neck Flange

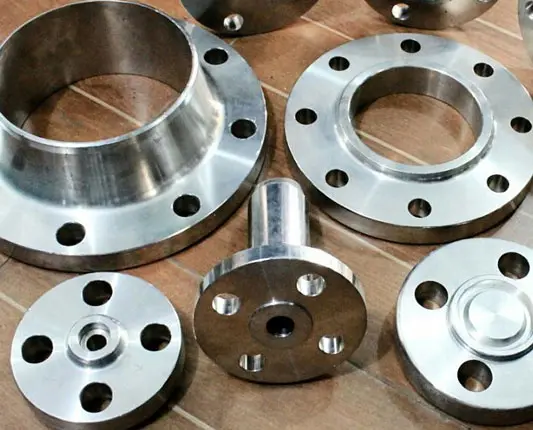

Incoloy 825 Long Weld Neck Flange

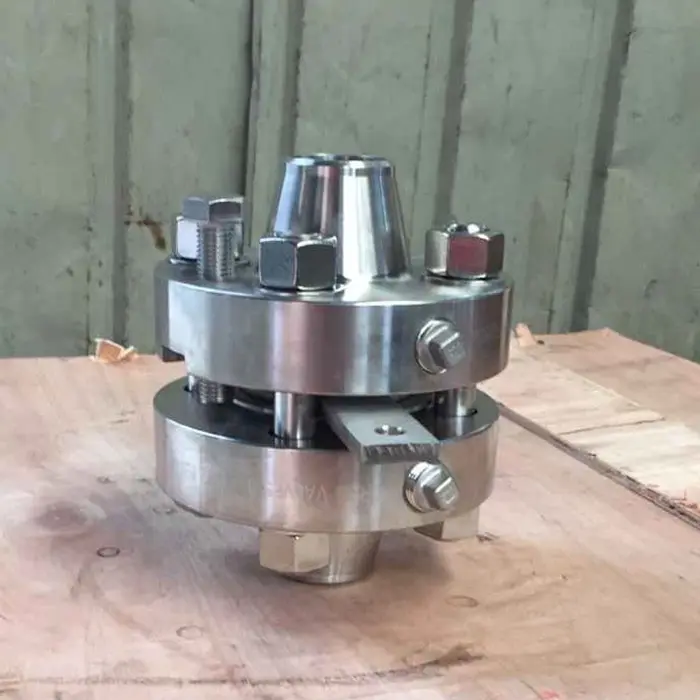

Incoloy 825 Orifice Flange
Incoloy 825 Blind Flange
Incoloy 825 Ring Flange

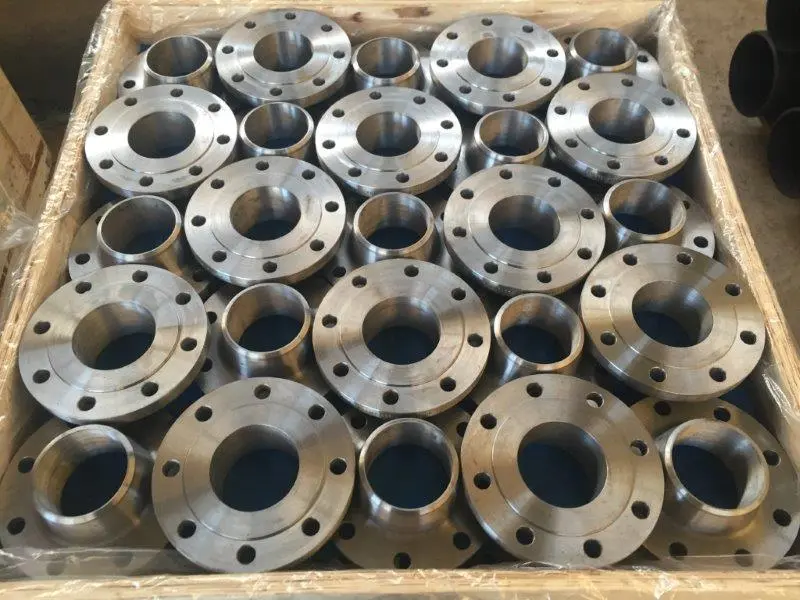

Incoloy 825 Socket Weld Flange
| Element | ASTM B564 / UNS N08825 (%) |
|---|---|
| Nickel (Ni) | 38.0 – 46.0 |
| Iron (Fe) | 22.0 min |
| Chromium (Cr) | 19.5 – 23.5 |
| Molybdenum (Mo) | 2.5 – 3.5 |
| Copper (Cu) | 1.5 – 3.0 |
| Titanium (Ti) | 0.6 – 1.2 |
| Carbon (C) | 0.05 max |
| Manganese (Mn) | 1.0 max |
| Sulfur (S) | 0.03 max |
| Silicon (Si) | 0.5 max |
| Aluminum (Al) | 0.2 max |
| Property | Value (Min. Requirement) |
|---|---|
| Tensile Strength (MPa) | 586 MPa (85,000 psi) |
| Yield Strength (0.2% Offset) | 241 MPa (35,000 psi) |
| Elongation (%) | 30% |
| Hardness (Rockwell B) | 75 - 90 HRB |
| Density | 8.14 g/cm³ |
| Melting Point | 1370 - 1400°C (2500 - 2550°F) |
| Poisson's Ratio | 0.31 |
