ASTM A182 F317 Stainless Steel Flanges are specialized high-alloy piping components engineered to offer enhanced resistance to chemical attack and localized corrosion. Produced in strict conformance with ASTM A182 and ASME SA182 standards, these forged flanges are crafted from grade 317 austenitic stainless steel. With an increased chromium (18% to 20%), nickel (11% to 15%), and molybdenum (3% to 4%) composition, these flanges deliver considerably higher resistance to pitting, crevice corrosion, and stress corrosion cracking compared to standard 304 or 316 variants.
Our advanced manufacturing units provide a complete line of ASTM A182 F317 slip-on, weld neck, blind, threaded, and socket weld flanges. Available in all primary pressure classes from Class 150 to Class 2500, these high-molybdenum flanges are precision machined using state-of-the-art CNC tools to ensure accurate seating surfaces. They are extensively utilized in flue gas desulfurization (FGD) systems, pulp and paper processing, chemical reactors, explosive manufacturing plants, and critical pharmaceutical piping where lines handle highly corrosive chloride or sulfur-bearing fluids.
| Specification | Details |
|---|---|
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Grade | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ASME, API, ASTM, BS, DIN, EN, MSS, JIS, AWWA, GOST ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Stainless Steel Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Stainless Steel Blind Flanges, Stainless Steel Table Flanges, Stainless Steel Weld Neck Flanges, Stainless Steel Threaded Flanges, Stainless Steel Slip-On Flanges, Stainless Steel Socketweld Flanges, Stainless Steel Plate Flanges, Stainless Steel Lap Joint Flanges, Stainless Steel Loose Flanges, and Stainless Steel Orifice Flanges. Stainless Steel AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Stainless Steel 317 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Stainless Steel 317 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Stainless Steel 317 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Stainless Steel 317 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Stainless Steel 317 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Stainless Steel 317 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Stainless Steel 317 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Stainless Steel 317 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Stainless Steel 317 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Stainless Steel 317 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |

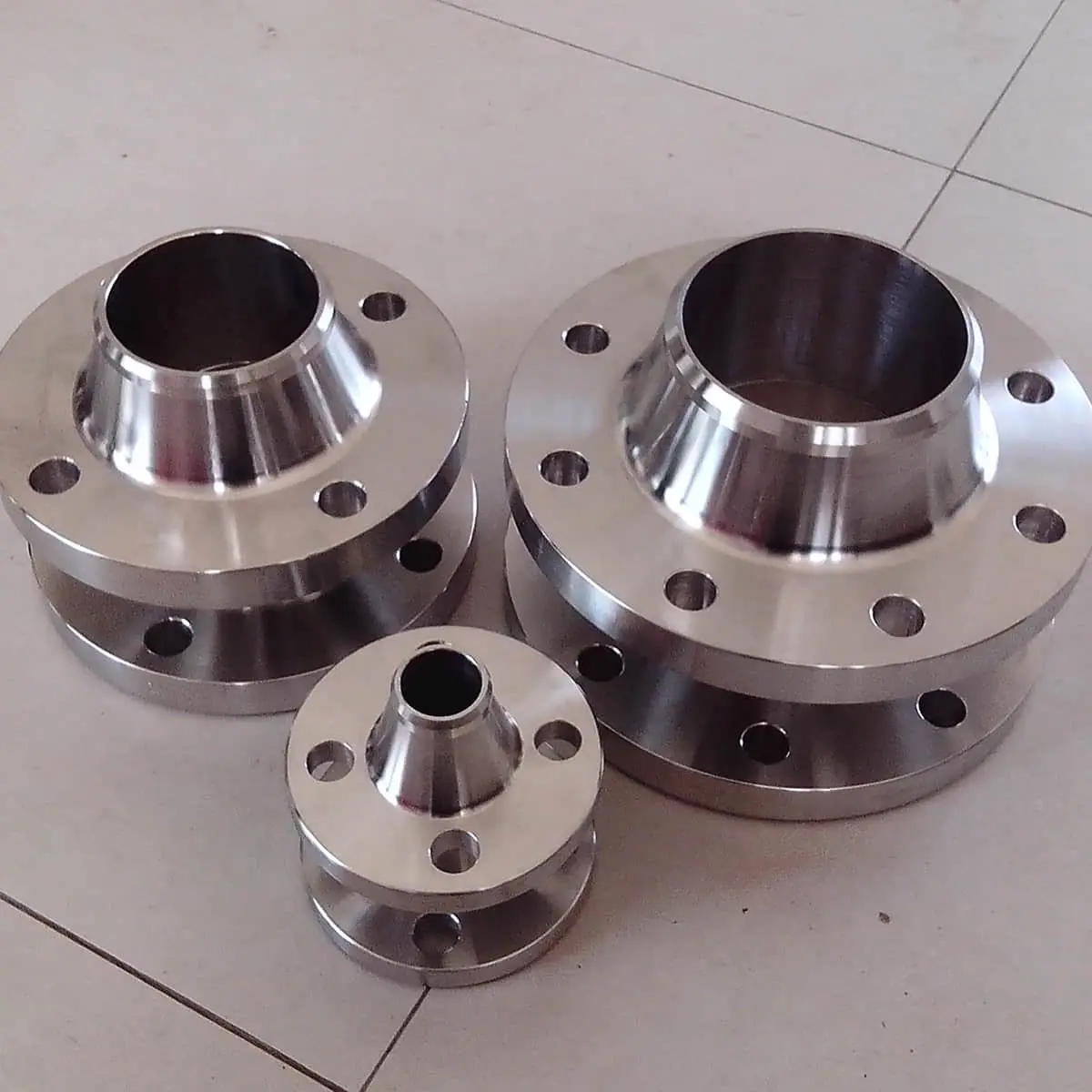

Stainless Steel 317 Weld Neck Flange
Stainless Steel 317 Lap Joint Flange
Stainless Steel 317 Orifice Flange
Stainless Steel 317 Spectacle Blind Flange
Stainless Steel 317 Ring Flange
Stainless Steel 317 Socket Weld Flange
| Element | Value (%) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 11.00 – 15.00 |
| Molybdenum (Mo) | 3.00 – 4.00 |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Iron (Fe) | Balance |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 515 min |
| Yield Strength (0.2% Offset, MPa) | 205 min |
| Elongation in 2 in. or 50mm (%) | 35 min |
| Reduction of Area (%) | 50 min |
| Hardness (Brinell HBW) | 201 max |
| Hardness (Rockwell B) | 92 max |
