ASTM B564 Incoloy 800 Flanges are composed of a nickel-iron-chromium alloy specifically engineered for applications requiring high strength and excellent resistance to oxidation and carburization at elevated temperatures. Known under the UNS N08800 designation, these flanges maintain a stable austenitic structure even after long-term exposure to high heat. The balanced chemical composition allows the alloy to resist many acidic environments while providing superior performance in processing equipment that operates between 1100°F and 1500°F (593°C to 815°C).
Our Incoloy 800 slip-on, weld neck, blind, and lap joint flanges are forged to meet the stringent requirements of ASME B16.5 and B16.47. These components are widely utilized in the power generation, petrochemical, and heat-treating industries due to their ability to resist sulfidation and internal oxidation. Whether used in steam generator tubing or industrial furnace components, our Incoloy 800 flanges offer exceptional durability and a secure, leak-proof seal in high-temperature piping systems. Each flange undergoes rigorous quality checks, including ultrasonic testing and chemical analysis, to ensure compliance with global industrial standards.
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | ASTM B564 Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations ASTM B564 Incoloy 800 Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | ASTM B564 Incoloy 800 Blind Flanges, ASTM B564 Incoloy 800 Table Flanges, ASTM B564 Incoloy 800 Weld Neck Flanges, ASTM B564 Incoloy 800 Threaded Flanges, ASTM B564 Incoloy 800 Slip-On Flanges, ASTM B564 Incoloy 800 Socketweld Flanges, ASTM B564 Incoloy 800 Plate Flanges, ASTM B564 Incoloy 800 Lap Joint Flanges, ASTM B564 Incoloy 800 Loose Flanges, and ASTM B564 Incoloy 800 Orifice Flanges. ASTM B564 Incoloy 800 AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Incoloy 800 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Incoloy 800 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Incoloy 800 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Incoloy 800 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Incoloy 800 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Incoloy 800 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Incoloy 800 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Incoloy 800 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Incoloy 800 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Incoloy 800 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |

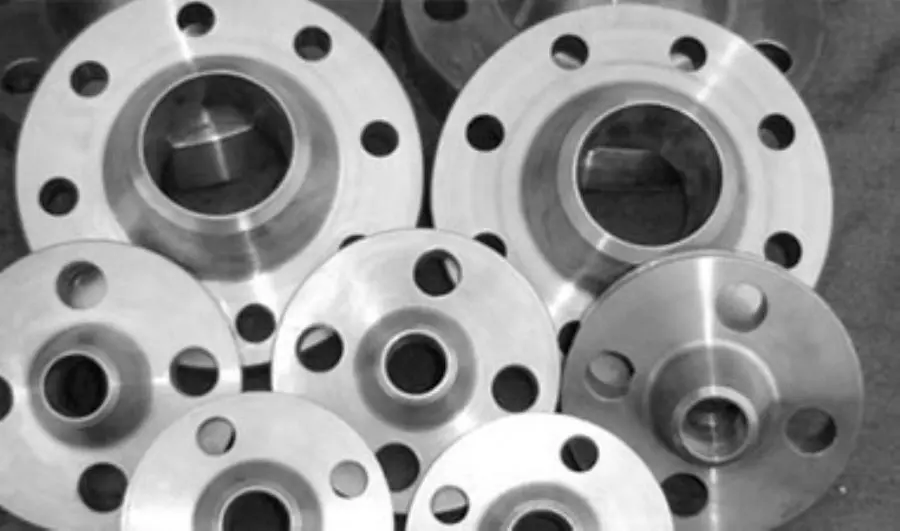

Incoloy 800 Weld Neck Flange

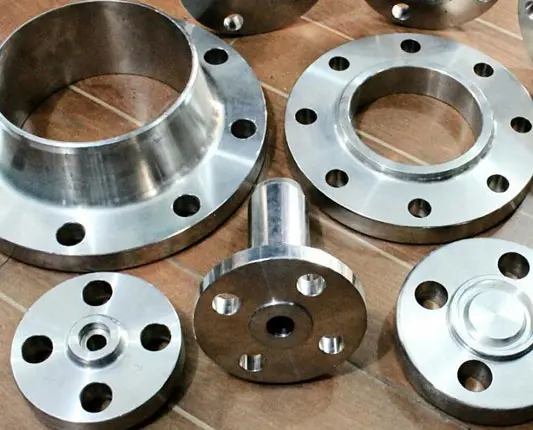

Incoloy 800 Long Weld Neck Flange

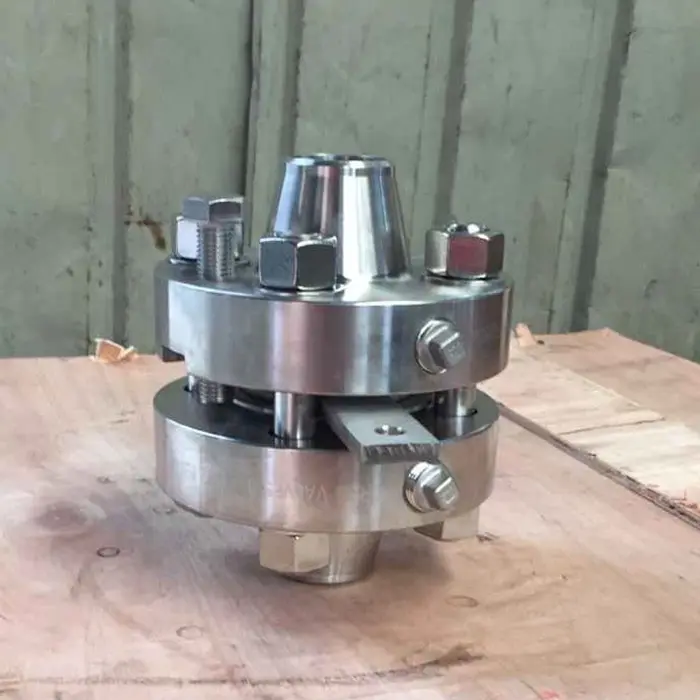

Incoloy 800 Orifice Flange
Incoloy 800 Blind Flange
Incoloy 800 Ring Flange

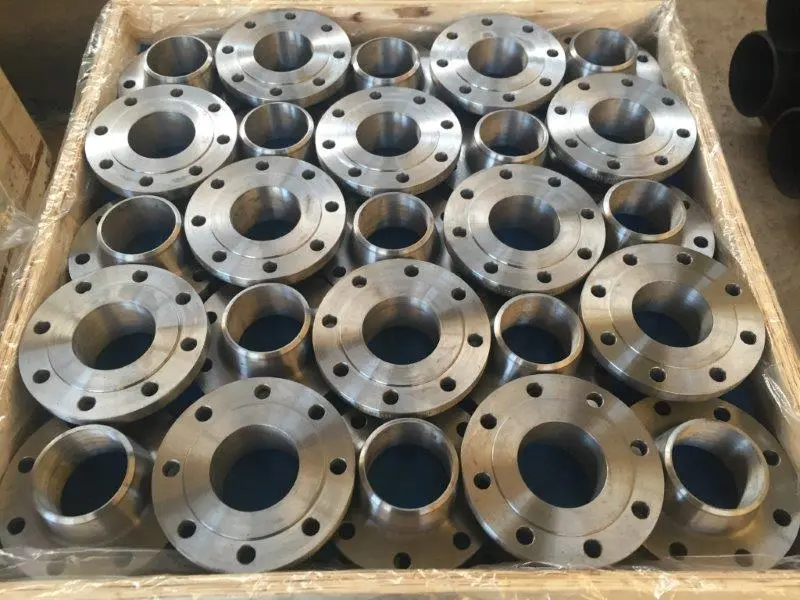

Incoloy 800 Socket Weld Flange
| Element | ASTM B564 / UNS N08800 (%) |
|---|---|
| Nickel (Ni) | 30.0 – 35.0 |
| Chromium (Cr) | 19.0 – 23.0 |
| Iron (Fe) | 39.5 min |
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 1.50 max |
| Sulfur (S) | 0.015 max |
| Silicon (Si) | 1.0 max |
| Copper (Cu) | 0.75 max |
| Aluminum (Al) | 0.15 – 0.60 |
| Titanium (Ti) | 0.15 – 0.60 |
| Property | Value (Min. Requirement) |
|---|---|
| Tensile Strength (MPa) | 520 MPa (75,000 psi) |
| Yield Strength (0.2% Offset) | 205 MPa (30,000 psi) |
| Elongation (%) | 30% |
| Hardness (Brinell) | 120 - 160 HBW |
| Density | 7.94 g/cm³ |
| Melting Point | 1357 - 1385°C (2475 - 2525°F) |
| Specific Heat | 460 J/kg·°C |
