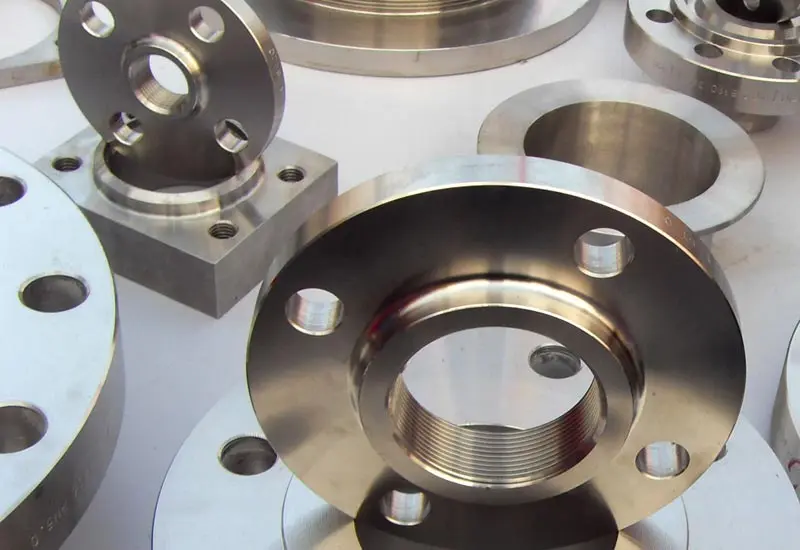

ASTM B564 Hastelloy C22 Flanges are manufactured from a versatile nickel-chromium-molybdenum-tungsten alloy, known for its superior resistance to a broad range of aggressive chemical environments. Classified under the UNS N06022 designation, Hastelloy C22 provides better overall resistance to pitting, crevice corrosion, and stress-corrosion cracking than other nickel-base alloys like C-276 and Alloy 625. It is particularly effective in resisting both oxidizing and reducing media, including wet chlorine, formic and acetic acids, and ferric or cupric chlorides.
Our Hastelloy C22 weld neck, slip-on, blind, and lap joint flanges are produced in compliance with ASTM B564 forging standards and ASME B16.5 dimensional specifications. The high chromium content of the alloy provides excellent resistance to oxidizing media, while the molybdenum and tungsten content aid in resistance to reducing environments. These flanges are widely utilized in waste-water treatment, chemical processing, and pharmaceutical industries due to their exceptional weldability and resistance to the formation of grain-boundary precipitates in the weld heat-affected zone, ensuring long-term reliability in highly corrosive service.
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Hastelloy C276 (UNS N10276, Alloy C276, 2.4819), Hastelloy C22 (UNS N06022, Alloy C22, 2.4602), Hastelloy B2 (UNS N10665, Alloy B2, 2.4617), Hastelloy X (Alloy X) |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K; |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Hastelloy Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Hastelloy Blind Flanges, Hastelloy Table Flanges, Hastelloy Weld Neck Flanges, Hastelloy Threaded Flanges, Hastelloy Slip-On Flanges, Hastelloy Socketweld Flanges, Hastelloy Plate Flanges, Hastelloy Lap Joint Flanges, Hastelloy Loose Flanges, and Hastelloy Orifice Flanges. Hastelloy AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Hastelloy C22 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Hastelloy C22 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Hastelloy C22 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Hastelloy C22 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Hastelloy C22 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Hastelloy C22 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Hastelloy C22 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Hastelloy C22 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Hastelloy C22 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Hastelloy C22 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |
Hastelloy C22 Weld Neck Flange
Hastelloy C22 Long Weld Neck Flange
Hastelloy C22 Orifice Flange
Hastelloy C22 Blind Flange
Hastelloy C22 Ring Flange
Hastelloy C22 Socket Weld Flange
| Element | ASTM B564 / UNS N06022 (%) |
|---|---|
| Nickel (Ni) | Balance (approx. 56.0) |
| Chromium (Cr) | 20.0 – 22.5 |
| Molybdenum (Mo) | 12.5 – 14.5 |
| Tungsten (W) | 2.5 – 3.5 |
| Iron (Fe) | 2.0 – 6.0 |
| Cobalt (Co) | 2.5 max |
| Manganese (Mn) | 0.50 max |
| Carbon (C) | 0.015 max |
| Silicon (Si) | 0.08 max |
| Phosphorus (P) | 0.02 max |
| Sulfur (S) | 0.02 max |
| Vanadium (V) | 0.35 max |
| Property | Value (Min. Requirement) |
|---|---|
| Tensile Strength (MPa) | 690 MPa (100,000 psi) |
| Yield Strength (0.2% Offset) | 310 MPa (45,000 psi) |
| Elongation (%) | 45% |
| Hardness (Rockwell B) | 89 HRB (Typical) |
| Density | 8.69 g/cm³ |
| Melting Range | 1357 – 1399°C (2475 – 2550°F) |
| Modulus of Elasticity | 206 GPa |
