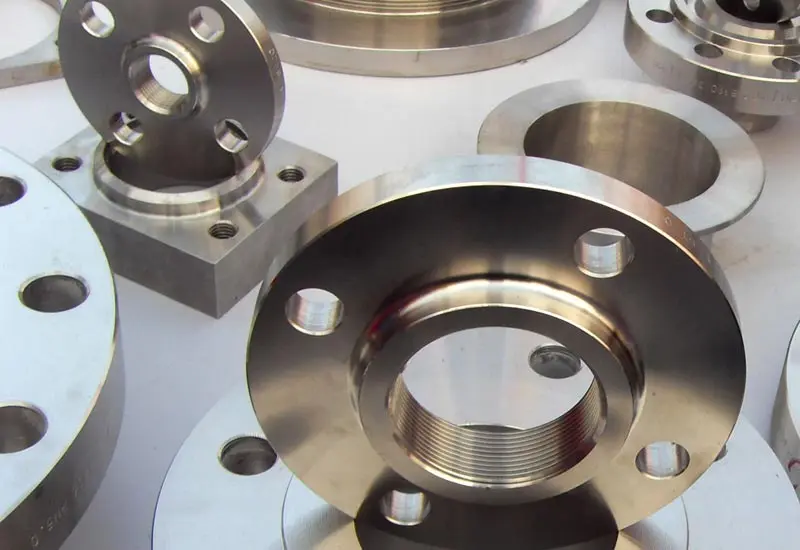

ASTM B564 Hastelloy X Flanges are manufactured from a nickel-chromium-iron-molybdenum alloy that is renowned for its exceptional strength and oxidation resistance at high temperatures. Designated as UNS N06002, Hastelloy X is a solid-solution-strengthened material that maintains excellent structural integrity even when exposed to temperatures up to 2200°F (1200°C). Unlike many other high-temperature alloys, it also exhibits outstanding resistance to carburizing and nitriding environments, making these flanges a critical choice for high-heat industrial applications.
Our Hastelloy X weld neck, slip-on, blind, and socket weld flanges are produced under strict ASTM B564 forging standards to ensure a dense, uniform grain structure that withstands thermal shock. The alloy’s unique chemistry provides a high degree of resistance to stress-corrosion cracking in petrochemical applications and maintains superior weldability with a low tendency toward hot cracking. These flanges are widely utilized in gas turbine engines, chemical process components, and industrial furnace applications where long-term durability under extreme thermal cycling is required.
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Hastelloy C276 (UNS N10276, Alloy C276, 2.4819), Hastelloy C22 (UNS N06022, Alloy C22, 2.4602), Hastelloy B2 (UNS N10665, Alloy B2, 2.4617), Hastelloy X (Alloy X) |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K; |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Hastelloy Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Hastelloy Blind Flanges, Hastelloy Table Flanges, Hastelloy Weld Neck Flanges, Hastelloy Threaded Flanges, Hastelloy Slip-On Flanges, Hastelloy Socketweld Flanges, Hastelloy Plate Flanges, Hastelloy Lap Joint Flanges, Hastelloy Loose Flanges, and Hastelloy Orifice Flanges. Hastelloy AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Hastelloy X Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Hastelloy X Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Hastelloy X Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Hastelloy X Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Hastelloy X loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Hastelloy X loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Hastelloy X Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Hastelloy X Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Hastelloy X Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Hastelloy X Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |

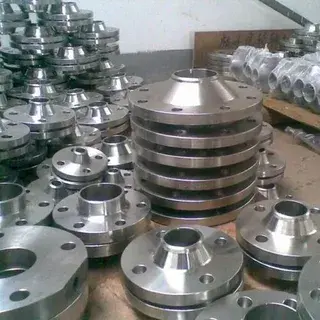

Hastelloy X Weld Neck Flange

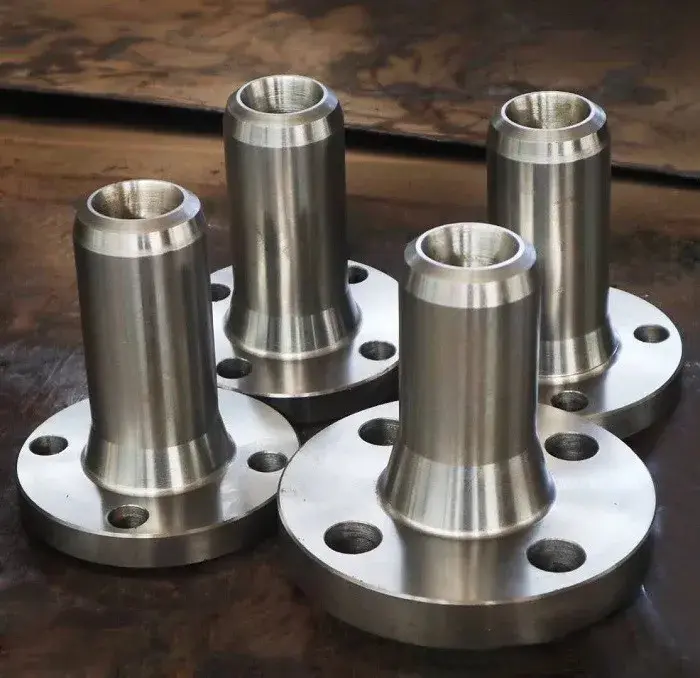

Hastelloy X Long Weld Neck Flange
Hastelloy X Orifice Flange

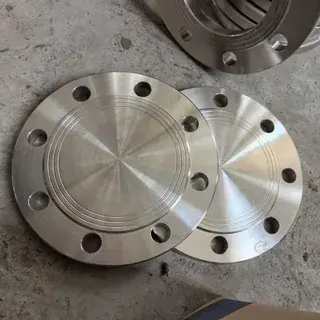

Hastelloy X Blind Flange

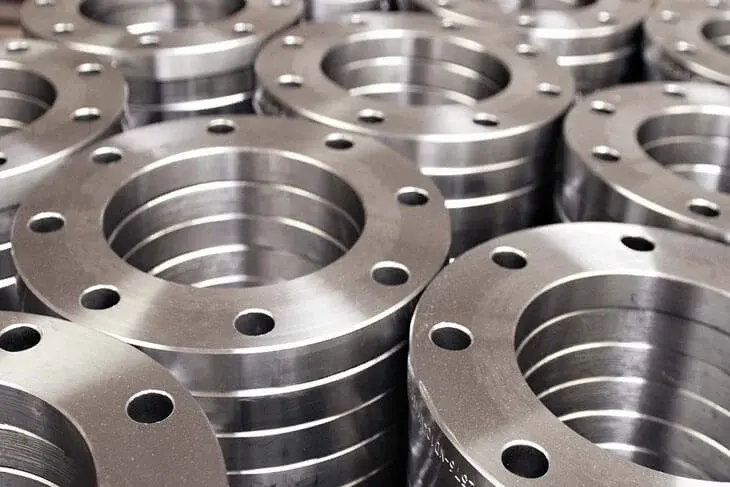

Hastelloy X Ring Flange

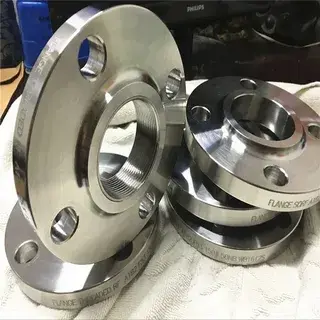

Hastelloy X Socket Weld Flange
| Element | ASTM B564 / UNS N06002 (%) |
|---|---|
| Nickel (Ni) | Balance (approx. 47.0) |
| Chromium (Cr) | 20.5 – 23.0 |
| Iron (Fe) | 17.0 – 20.0 |
| Molybdenum (Mo) | 8.0 – 10.0 |
| Cobalt (Co) | 0.5 – 2.5 |
| Tungsten (W) | 0.2 – 1.0 |
| Carbon (C) | 0.05 – 0.15 |
| Manganese (Mn) | 1.0 max |
| Silicon (Si) | 1.0 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.03 max |
| Property | Value (Min. Requirement) |
|---|---|
| Tensile Strength (MPa) | 655 MPa (95,000 psi) |
| Yield Strength (0.2% Offset) | 240 MPa (35,000 psi) |
| Elongation (%) | 35% |
| Hardness (Rockwell B) | 88 HRB (Typical) |
| Density | 8.22 g/cm³ |
| Melting Range | 1260 – 1355°C (2300 – 2470°F) |
| Modulus of Elasticity | 205 GPa |
| Thermal Conductivity | 9.1 W/m·K (at 20°C) |
