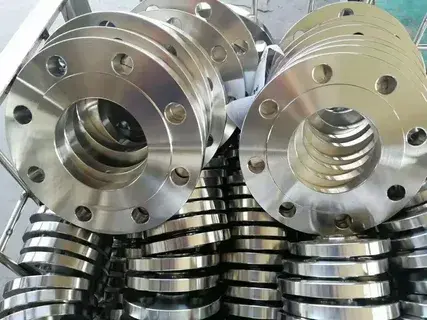

ASTM A182 Stainless Steel 316 Flanges are heavy-duty, marine-grade piping components specifically engineered to provide superior resistance to chloride-induced pitting and crevice corrosion. Manufactured in absolute compliance with ASTM A182 and ASME SA182 standards, these forged flanges are produced from high-quality 316 austenitic stainless steel. The addition of molybdenum (2% to 3%) within the alloy matrix significantly enhances its structural integrity and chemical stability compared to standard grades, making these flanges exceptionally durable in highly corrosive environments.
Our manufacturing facility delivers a complete spectrum of ASTM A182 F316 weld neck, slip-on, blind, threaded, and socket weld flanges. Available in all primary pressure classes from Class 150 to Class 2500 and PN6 to PN64, each component is precision CNC machined to guarantee flat and smooth seating surfaces. They are extensively utilized in chemical processing lines, marine installations, offshore platforms, pharmaceutical facilities, and coastal water treatment plants where pipelines are continuously exposed to severe chemical or saline environments.
| Specification | Details |
|---|---|
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Grade | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ASME, API, ASTM, BS, DIN, EN, MSS, JIS, AWWA, GOST ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Stainless Steel Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Stainless Steel Blind Flanges, Stainless Steel Table Flanges, Stainless Steel Weld Neck Flanges, Stainless Steel Threaded Flanges, Stainless Steel Slip-On Flanges, Stainless Steel Socketweld Flanges, Stainless Steel Plate Flanges, Stainless Steel Lap Joint Flanges, Stainless Steel Loose Flanges, and Stainless Steel Orifice Flanges. Stainless Steel AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Stainless Steel 316 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Stainless Steel 316 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Stainless Steel 316 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Stainless Steel 316 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Stainless Steel 316 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Stainless Steel 316 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Stainless Steel 316 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Stainless Steel 316 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Stainless Steel 316 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Stainless Steel 316 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |

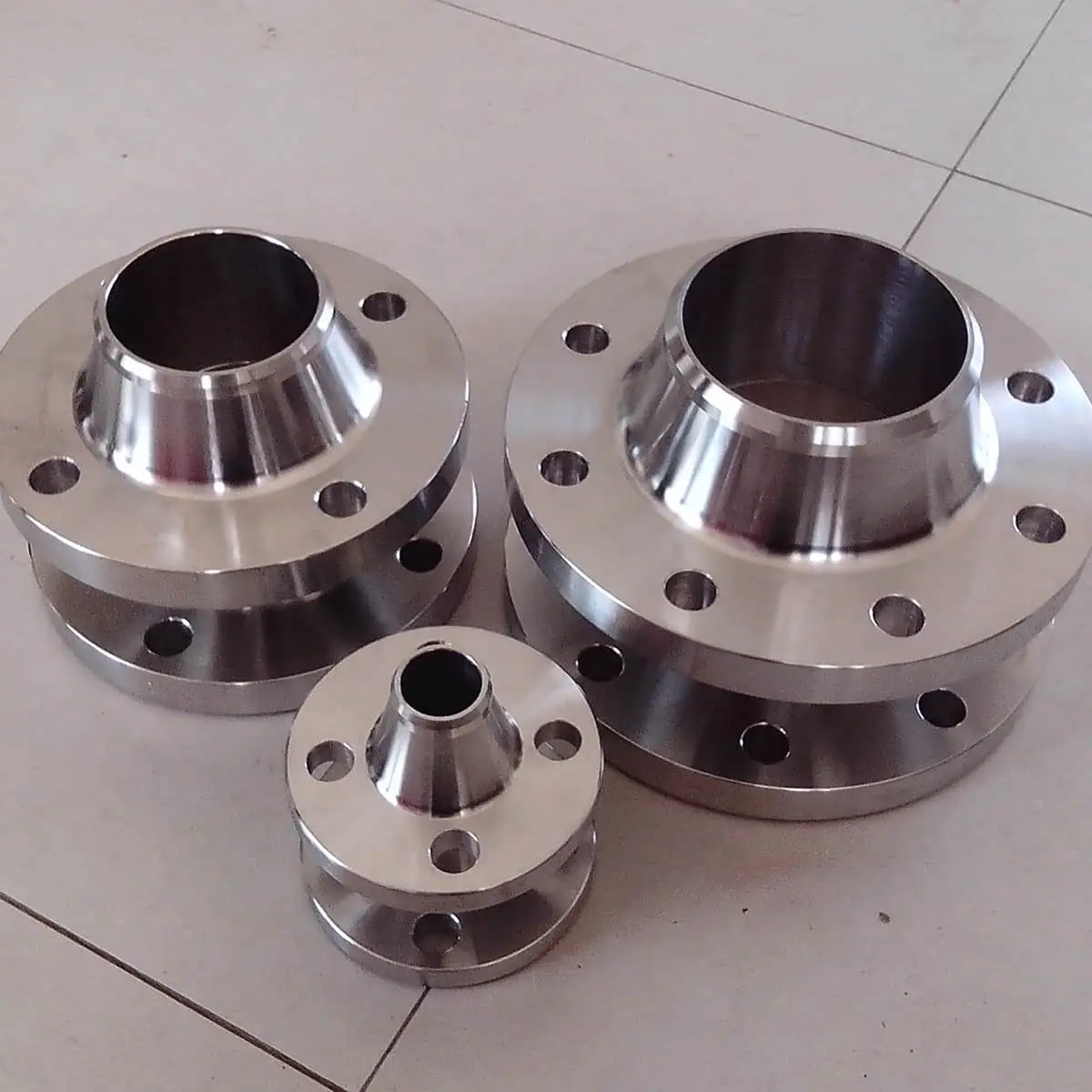

Stainless Steel 316 Weld Neck Flange

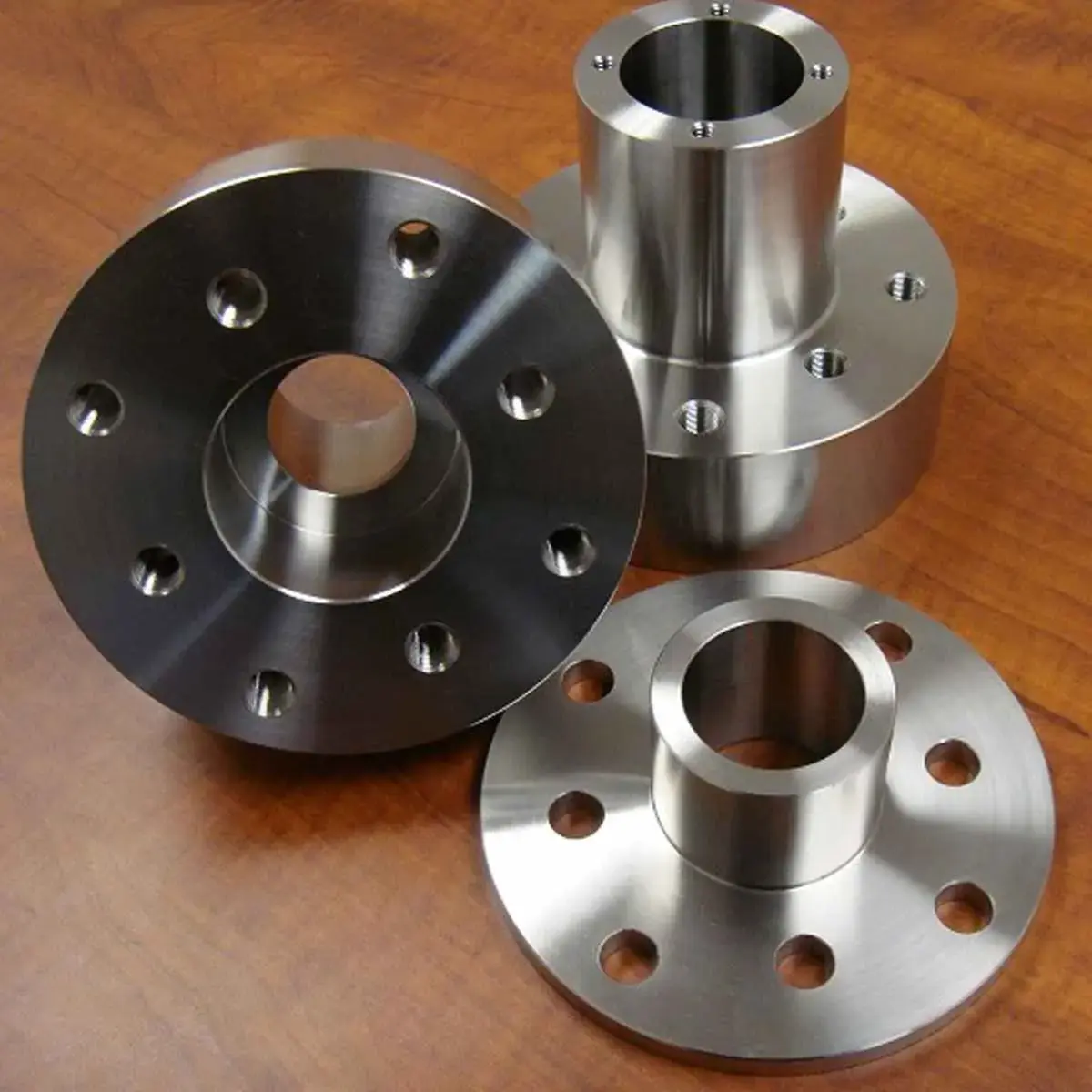

Stainless Steel 316 Lap Joint Flange

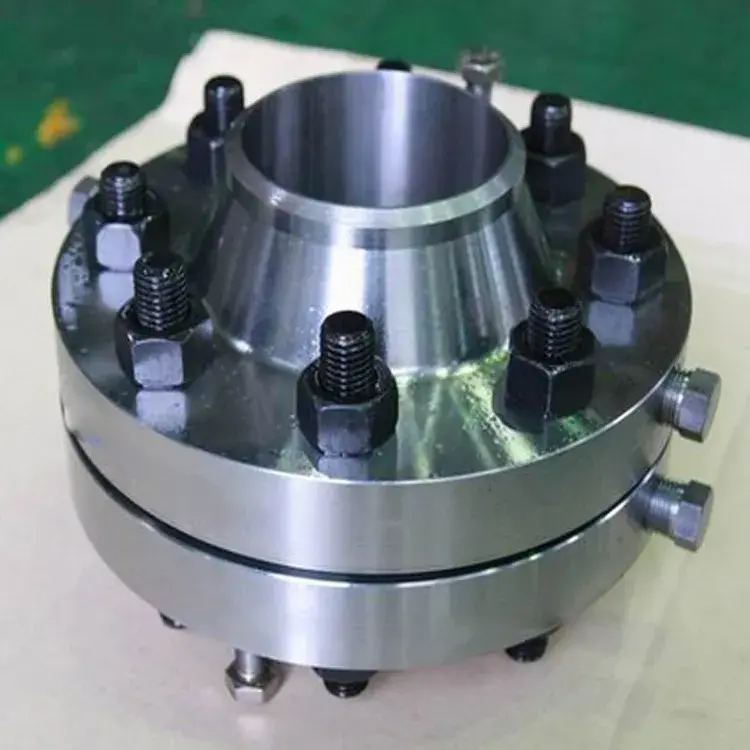

Stainless Steel 316 Orifice Flange

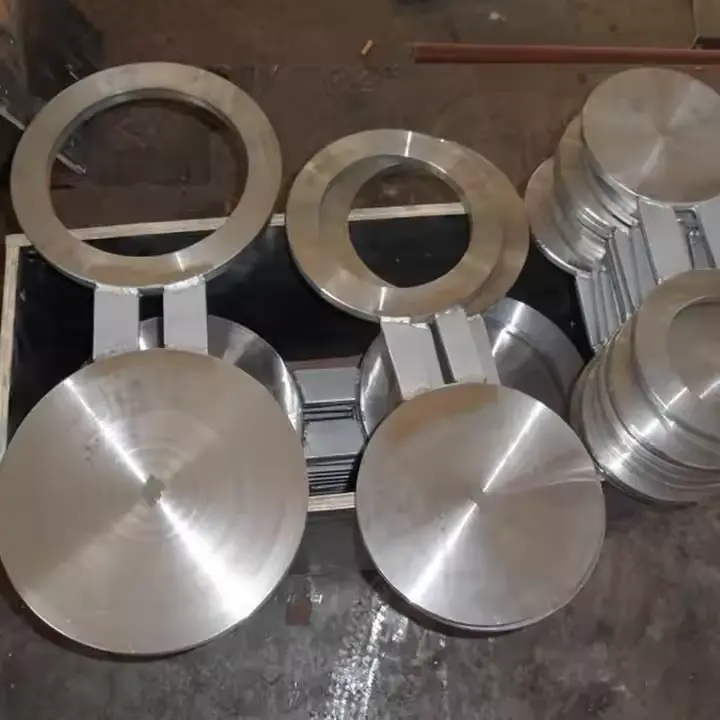

Stainless Steel 316 Spectacle Blind Flange

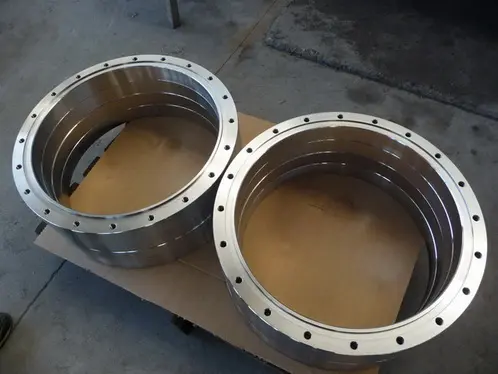

Stainless Steel 316 Ring Flange

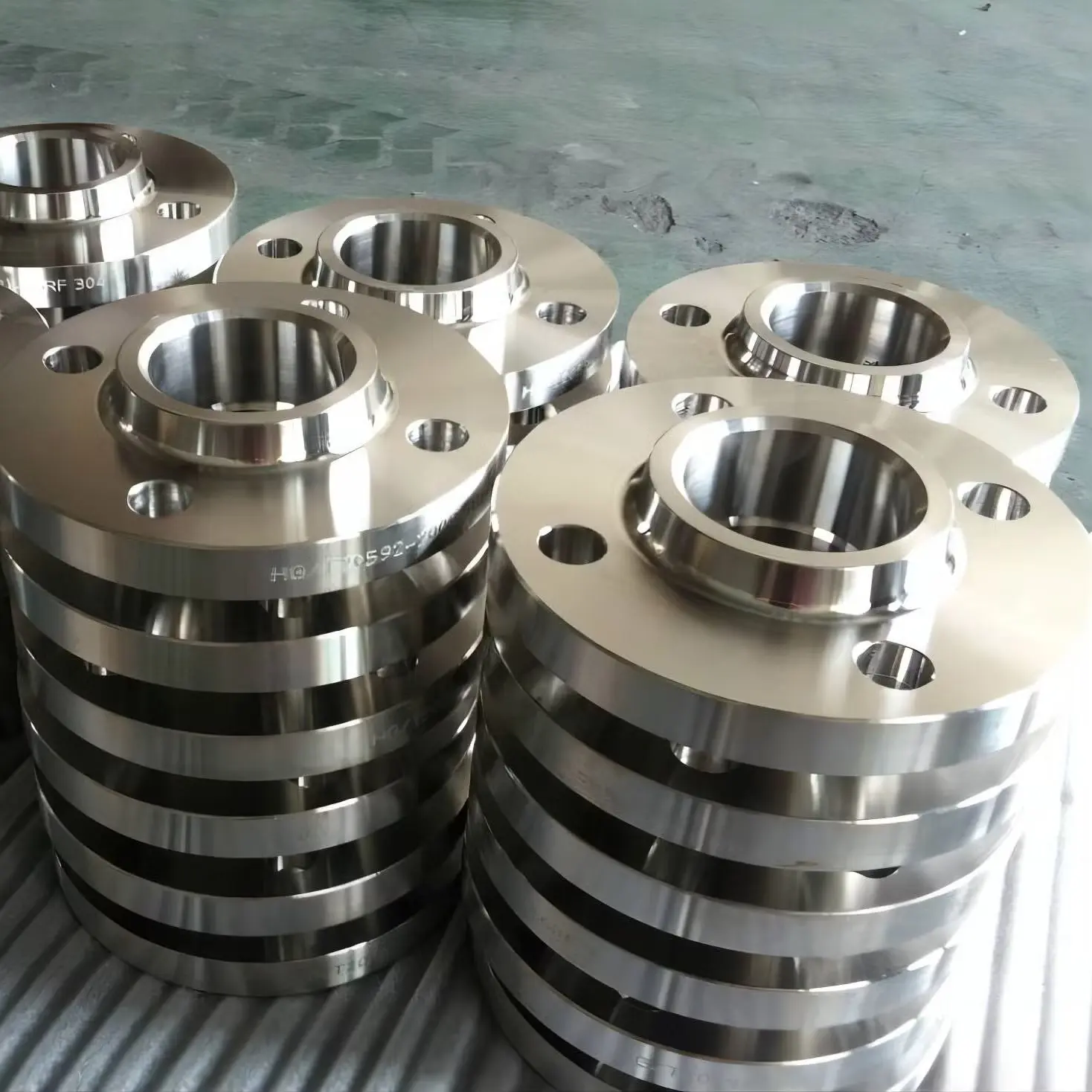

Stainless Steel 316 Socket Weld Flange
| Element | Value (%) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 16.00 – 18.00 |
| Nickel (Ni) | 10.00 – 14.00 |
| Molybdenum (Mo) | 2.00 – 3.00 |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Iron (Fe) | Balance |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 515 min |
| Yield Strength (0.2% Offset, MPa) | 205 min |
| Elongation in 2 in. or 50mm (%) | 30 min |
| Reduction of Area (%) | 50 min |
| Hardness (Brinell HBW) | 201 max |
| Hardness (Rockwell B) | 92 max |
