Golden Steel Material is a leading Stainless Steel 317L Tubes Supplier in Saudi Arabia, providing advanced alloy solutions for the most demanding petrochemical and offshore applications. Our ASTM A312 TP317L tubes are characterized by an extra-low carbon content (0.03% max) and enhanced Molybdenum levels, which virtually eliminate intergranular corrosion during welding while offering superior resistance to pitting in the aggressive salt-spray environments of Jubail, Yanbu, and Dammam.
As a specialized SS 317L Seamless Tubes stockist, we supply materials that outperform 316L in handling highly corrosive media such as sulfurous acid, chlorides, and organic acids. These tubes are the definitive choice for flue gas desulfurization (FGD) systems, chemical tankers, and specialized heat exchangers in Jeddah and Riyadh, where long-term durability and structural integrity in welded high-pressure systems are non-negotiable.
We act as a trusted Stainless Steel 317L Tubes exporter in Saudi Arabia, delivering fully certified products that meet NACE MR0175/ISO 15156 specifications for sour service. With competitive pricing and a robust inventory for project-based requirements and emergency maintenance, we support Saudi industrial contractors with high-performance 317L tubing designed to thrive in the Kingdom's most corrosive industrial zones.

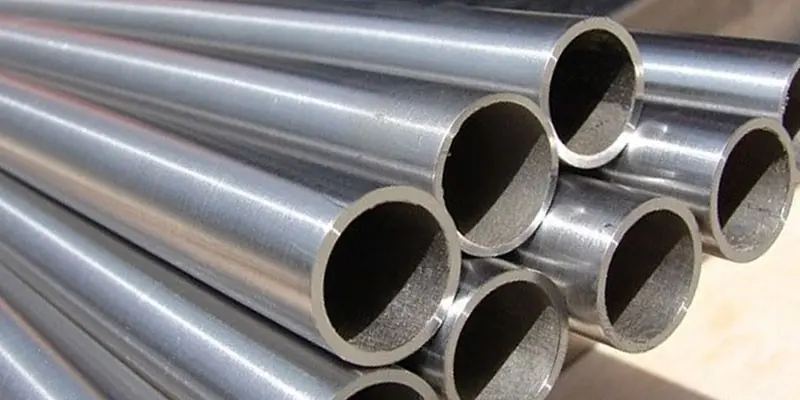

SS 317L Seamless Tube Supplier

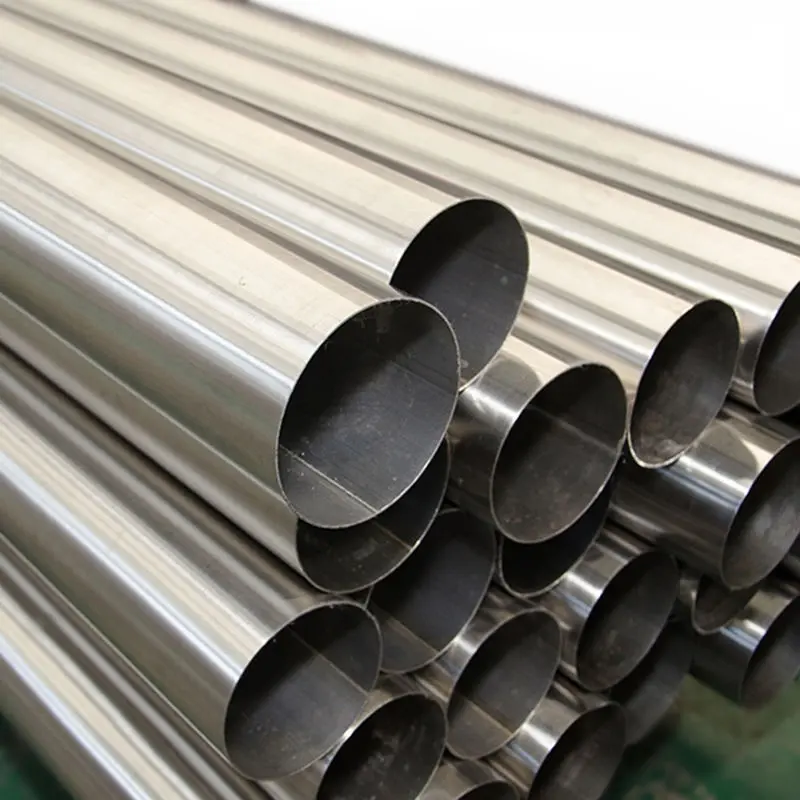

SS 317L Welded / ERW Tube

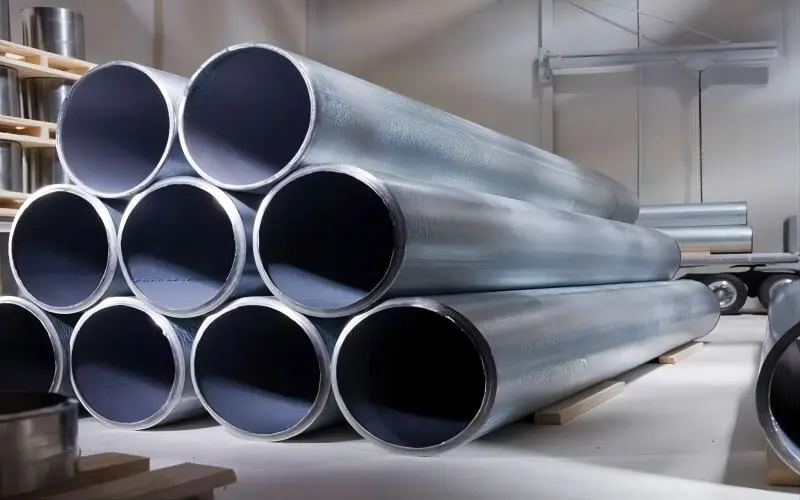

SS 317L Large Diameter Tubes
| Features | Specifications |
|---|---|
| SS Tube Grade | TP 304/ SS 304, TP 304H/ SS 304H, TP 304L/ SS 304L, TP 304LN/ SS 304LN, TP 316/ SS 316, TP 316H/ SS 316H, TP 316L/ SS 316L, TP 316LN/ SS 316LN, TP 316Ti/ SS 316Ti, TP 309/ SS 309, TP 310/ SS 310, TP 317L/ SS 317L, TP 321/ SS 321, TP 347/ SS 347, TP 409/ SS 409, TP 410/ SS 410, TP 420/ SS 420, TP 430/ SS 430, TP 446/ SS 446, TP 202/ SS 202 etc. |
| Specification | ASTM A 269/A 213 / EN 10216-5 / NACE MR0175/PED 97/23 EC |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| End | Plain End, Beveled End, Threaded |
| End Protection | Plastic Caps / Protective End Protectors |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Brand / Origin | European, Japanese, Korean, US, Russian, Indian, and Saudi Arabian Origin |
| Special Pipes | Stainless Steel 317L Fabricated Pipe (with radiography) |
| In Form of |
|
| In Length of | Single Random, Double Random, Standard & Cut length |
| Value Added Service |
|
| Test Certificate |
Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection. Includes: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports. |
| Specialize |
|
| UNSPSC Code |
|
SS 317L Seamless Pipe
SS 317L Welded Pipe
SS 317L Tubing
Thick wall SS 317L tube
SS 317L Round Tube
Custom Stainless Steel 317L tube
| Pipe/ Tube Type | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Stainless Steel 317L Tubes Pipe / Tubes | 1/2 | - | ||||
| Stainless Steel 317L Tubes Pipe / Tubes | 3/4 | - | ||||
| Stainless Steel 317L Tubes Pipe / Tubes | 1 | - | ||||
| Stainless Steel 317L Tubes Pipe / Tubes | 1.25 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 1.5 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 2 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 2.5 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 3 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 3.5 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 4 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 5 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 6 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 8 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 10 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 12 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 14 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 16 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 18 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 20 | |||||
| Stainless Steel 317L Tubes Pipe / Tubes | 22 | - | ||||
| Stainless Steel 317L Tubes Pipe / Tubes | 24 | - |
| Grade | Limit | Fe | Cr | Ni | Mo | Mn | Si | P | C | S |
|---|---|---|---|---|---|---|---|---|---|---|
| AISI 317L | Min | Bal. | 18.0 | 11.0 | 3.0 | – | – | – | – | – |
| Max | – | 20.0 | 15.0 | 4.0 | 2.00 | 1.00 | 0.040 | 0.035 | 0.030 |
Physical Properties
| Property Type | Value (Grade 317L) |
|---|---|
| Tensile Strength (MPa) | 515 – 750 (Min) |
| Yield Strength 0.2% Offset (MPa) | 205 (Min) |
| Elongation (% in 50mm) | 35 (Min) |
| Density / Weight (g/cm³) | 7.90 |
| Nominal Pipe Size (inches) | Outside Diameter | Schedules (Wall Thickness & Weight) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inches | 5S | 10S | 40S | 80S | |||||
| WT (mm) | kg/m | WT (mm) | kg/m | WT (mm) | kg/m | WT (mm) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 | 0.28 | 1.73 | 0.37 | 2.42 | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 | 0.49 | 2.24 | 0.63 | 3.03 | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 | 0.63 | 2.32 | 0.85 | 3.20 | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 | 0.81 | 2.11 | 1.00 | 2.77 | 1.27 | 3.74 | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 | 1.02 | 2.11 | 1.28 | 2.87 | 1.68 | 3.92 | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 | 1.66 | 2.77 | 2.69 | 3.56 | 3.39 | 4.86 | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 | 1.91 | 2.77 | 3.11 | 3.69 | 4.06 | 5.08 | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 | 2.40 | 2.77 | 3.93 | 3.92 | 5.45 | 5.54 | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.64 | 7.01 | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 | 4.52 | 3.05 | 6.46 | 5.49 | 11.3 | 7.62 | 15.3 |
| 4 | 114.3 | 4.500 | 2.11 | 5.84 | 3.05 | 8.37 | 6.02 | 16.1 | 8.56 | 22.3 |
| 6 | 168.3 | 6.625 | 2.77 | 11.3 | 3.41 | 13.9 | 7.12 | 28.3 | 10.98 | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 | 14.8 | 3.76 | 20.0 | 8.18 | 42.5 | 12.70 | 64.6 |
| 12 | 323.9 | 12.750 | 3.97 | 31.3 | 4.58 | 36.1 | 9.53 | 73.9 | 12.70 | 97.4 |
