Golden Steel Material is a premier ISO-certified stockist based in Al Jubail. We supply high-performance pipes, fittings, valves, and flanges to the Oil & Gas and Industrial sectors across Saudi Arabia and the GCC.
Call Us
Send Email
Location
Welcome to Golden Steel Material Let’s Talk
Golden Steel Material is a premier Stainless Steel 316L Tubes Supplier in Saudi Arabia, specializing in high-integrity piping for the Kingdom’s petrochemical, offshore, and desalination sectors. Our ASTM A312 TP316L tubes feature an extra-low carbon content, which effectively eliminates carbide precipitation during welding, ensuring the structural joints remain as corrosion-resistant as the base metal in the harsh environments of Jubail and Yanbu.
As a leading SS 316L Seamless Tubes stockist, we provide materials that offer superior pitting and crevice corrosion resistance compared to standard 18-8 stainless steels. Our 316L instrumentation tubing is the gold standard for control systems, marine infrastructure, and chemical process lines in Dammam and Riyadh, providing long-term reliability even when exposed to saltwater and corrosive chlorides along the Saudi coastline.
We act as a trusted Stainless Steel 316L Tubes exporter in Saudi Arabia, offering products that meet NACE MR0175/ISO 15156 standards for sour gas service. With competitive pricing and a vast inventory of ready-to-ship stock, we support Aramco-approved contractors with high-quality 316L tubing designed for maximum durability in high-stress, corrosion-prone environments.

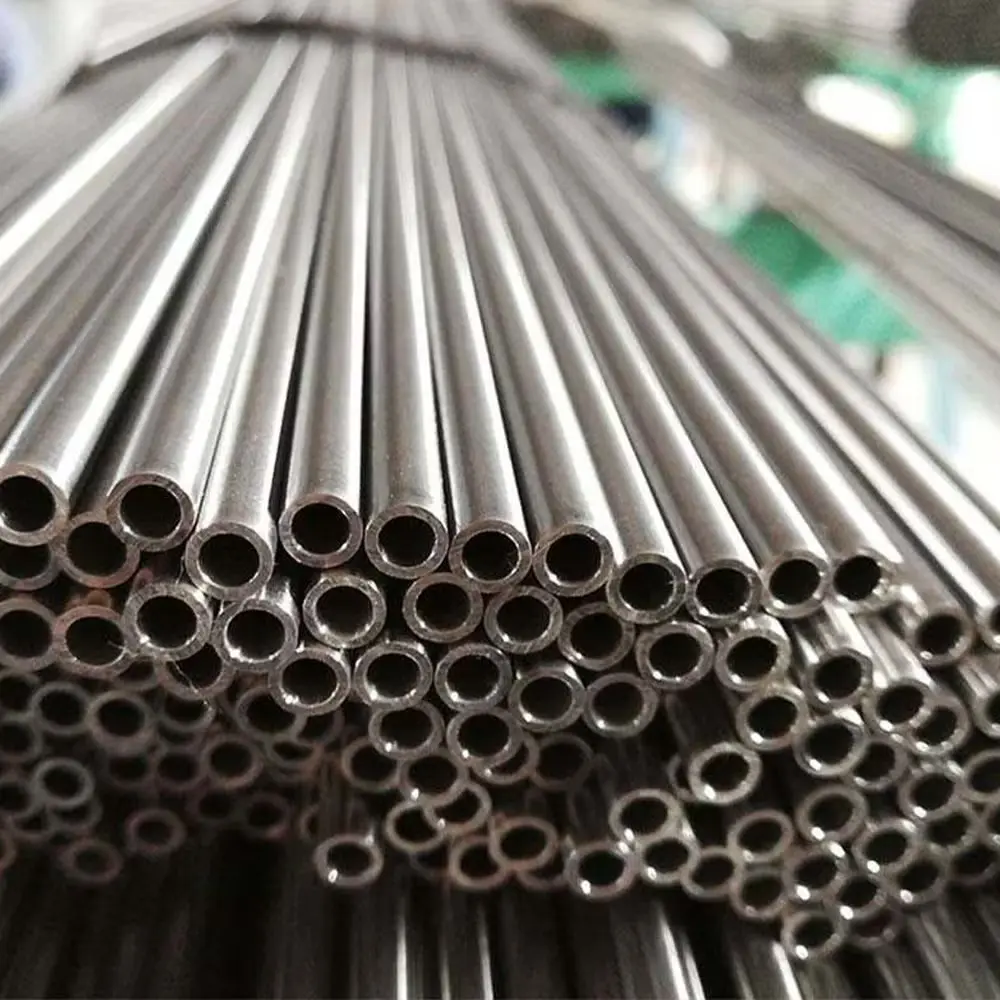

SS 316L Seamless Tube Supplier

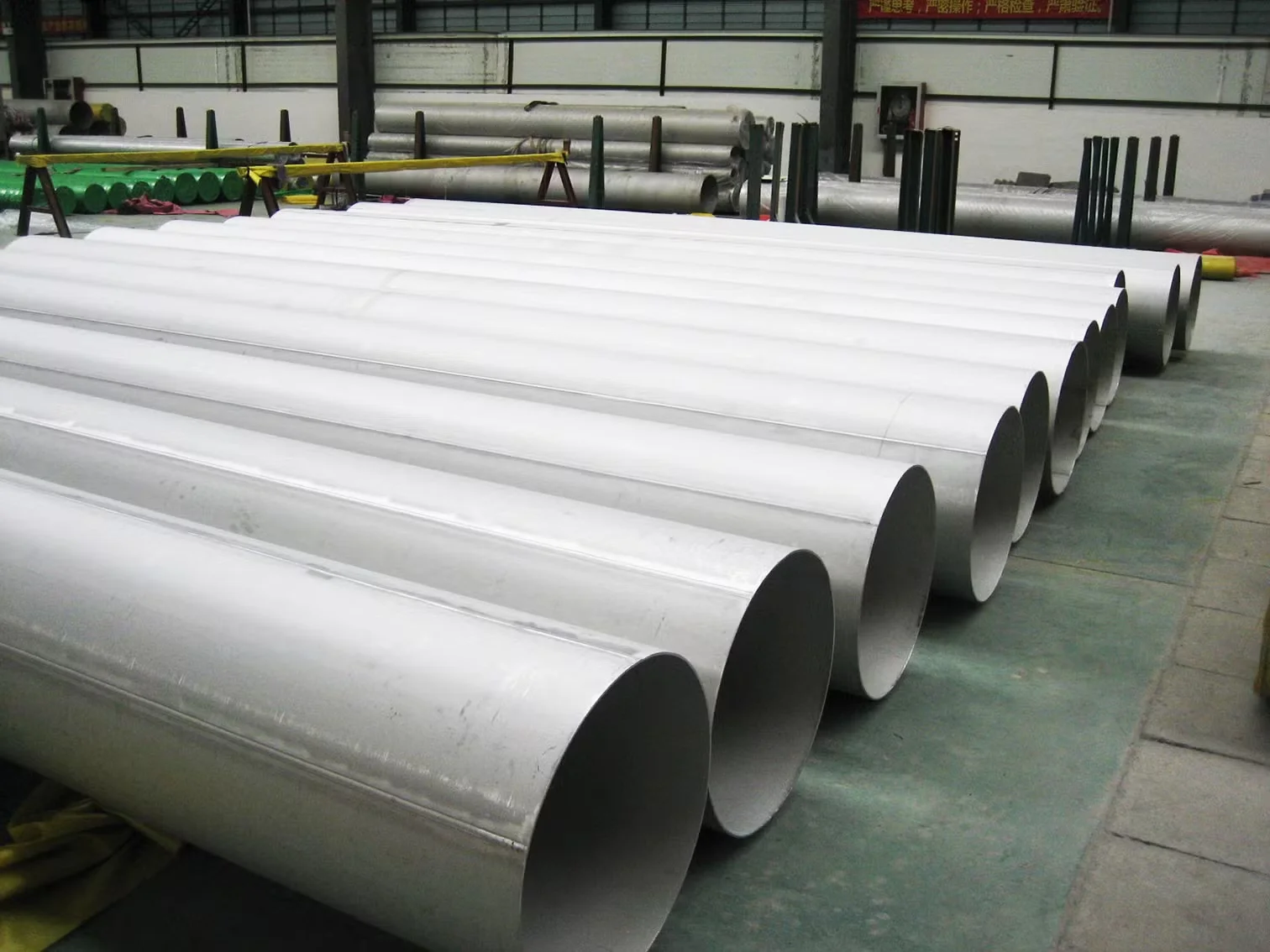

SS 316L Welded / ERW Tube
SS 3 16L Large Diameter Tubes
| Features | Specifications |
|---|---|
| SS Tube Grade | TP 304/ SS 304, TP 304H/ SS 304H, TP 304L/ SS 304L, TP 304LN/ SS 304LN, TP 316/ SS 316, TP 316H/ SS 316H, TP 316L/ SS 316L, TP 316LN/ SS 316LN, TP 316Ti/ SS 316Ti, TP 309/ SS 309, TP 310/ SS 310, TP 317L/ SS 317L, TP 321/ SS 321, TP 347/ SS 347, TP 409/ SS 409, TP 410/ SS 410, TP 420/ SS 420, TP 430/ SS 430, TP 446/ SS 446, TP 202/ SS 202 etc. |
| Specification | ASTM A 269/A 213 / EN 10216-5 / NACE MR0175/PED 97/23 EC |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| End | Plain End, Beveled End, Threaded |
| End Protection | Plastic Caps / Protective End Protectors |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Brand / Origin | European, Japanese, Korean, US, Russian, Indian, and Saudi Arabian Origin |
| Special Pipes | Stainless Steel 316L Fabricated Pipe (with radiography) |
| In Form of |
|
| In Length of | Single Random, Double Random, Standard & Cut length |
| Value Added Service |
|
| Test Certificate |
Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection. Includes: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports. |
| Specialize |
|
| UNSPSC Code |
|
SS 316L Seamless Pipe
SS 316L Welded Pipe
SS 316L Tubing
Thick wall SS 316L tube
SS 316L Round Tube
Custom Stainless Steel 316L tube
| Pipe/ Tube Type | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Stainless Steel 316L Pipe / Tubes | 1/2 | - | ||||
| Stainless Steel 316L Pipe / Tubes | 3/4 | - | ||||
| Stainless Steel 316L Pipe / Tubes | 1 | - | ||||
| Stainless Steel 316L Pipe / Tubes | 1.25 | |||||
| Stainless Steel 316L Pipe / Tubes | 1.5 | |||||
| Stainless Steel 316L Pipe / Tubes | 2 | |||||
| Stainless Steel 316L Pipe / Tubes | 2.5 | |||||
| Stainless Steel 316L Pipe / Tubes | 3 | |||||
| Stainless Steel 316L Pipe / Tubes | 3.5 | |||||
| Stainless Steel 316L Pipe / Tubes | 4 | |||||
| Stainless Steel 316L Pipe / Tubes | 5 | |||||
| Stainless Steel 316L Pipe / Tubes | 6 | |||||
| Stainless Steel 316L Pipe / Tubes | 8 | |||||
| Stainless Steel 316L Pipe / Tubes | 10 | |||||
| Stainless Steel 316L Pipe / Tubes | 12 | |||||
| Stainless Steel 316L Pipe / Tubes | 14 | |||||
| Stainless Steel 316L Pipe / Tubes | 16 | |||||
| Stainless Steel 316L Pipe / Tubes | 18 | |||||
| Stainless Steel 316L Pipe / Tubes | 20 | |||||
| Stainless Steel 316L Pipe / Tubes | 22 | - | ||||
| Stainless Steel 316L Pipe / Tubes | 24 | - |
| Grade | Limit | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|---|
| AISI 316L | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
Physical Properties
| Grade | Tensile Strength (MPa) Min | Yield Strength 0.2% Proof (MPa) Min | Elongation (% in 50mm) Min | Hardness (Max) | |
|---|---|---|---|---|---|
| Rockwell B (HR B) | Brinell (HB) | ||||
| AISI 316L | 485 | 170 | 40 | 95 | 217 |
| Nominal Pipe Size (inches) | Outside Diameter | Schedules (Wall Thickness & Weight) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inches | 5S | 10S | 40S | 80S | |||||
| WT (mm) | kg/m | WT (mm) | kg/m | WT (mm) | kg/m | WT (mm) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 | 0.28 | 1.73 | 0.37 | 2.42 | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 | 0.49 | 2.24 | 0.63 | 3.03 | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 | 0.63 | 2.32 | 0.85 | 3.20 | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 | 0.81 | 2.11 | 1.00 | 2.77 | 1.27 | 3.74 | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 | 1.02 | 2.11 | 1.28 | 2.87 | 1.68 | 3.92 | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 | 1.66 | 2.77 | 2.69 | 3.56 | 3.39 | 4.86 | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 | 1.91 | 2.77 | 3.11 | 3.69 | 4.06 | 5.08 | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 | 2.40 | 2.77 | 3.93 | 3.92 | 5.45 | 5.54 | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.64 | 7.01 | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 | 4.52 | 3.05 | 6.46 | 5.49 | 11.3 | 7.62 | 15.3 |
| 4 | 114.3 | 4.500 | 2.11 | 5.84 | 3.05 | 8.37 | 6.02 | 16.1 | 8.56 | 22.3 |
| 6 | 168.3 | 6.625 | 2.77 | 11.3 | 3.41 | 13.9 | 7.12 | 28.3 | 10.98 | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 | 14.8 | 3.76 | 20.0 | 8.18 | 42.5 | 12.70 | 64.6 |
| 12 | 323.9 | 12.750 | 3.97 | 31.3 | 4.58 | 36.1 | 9.53 | 73.9 | 12.70 | 97.4 |
