Golden Steel Material is a premier Stainless Steel 317 Tubes Supplier in Saudi Arabia, offering high-alloy solutions for the Kingdom’s most aggressive chemical processing and industrial environments. Our ASTM A312 TP317 tubes are engineered with an increased Molybdenum content (3% to 4%), providing a significant upgrade in pitting and crevice corrosion resistance compared to standard 316 grades, especially in the high-chloride atmospheres of Jubail and Yanbu.
As a specialized SS 317 Seamless Tubes stockist, we supply high-performance tubing designed to withstand sulfuric, acetic, and citric acids. These tubes are extensively used in desalination plants, flue gas desulfurization (FGD) systems, and offshore chemical injection lines across Dammam, Jeddah, and Riyadh, where the combination of high temperatures and corrosive media requires a more robust austenitic stainless steel.
We serve as a reliable Stainless Steel 317 Tubes exporter in Saudi Arabia, ensuring all products meet strict international quality standards and project specifications. With competitive lead times and expert technical support, we provide Saudi industrial contractors with durable 317 tubing solutions that reduce maintenance costs and extend the service life of critical petrochemical infrastructure.

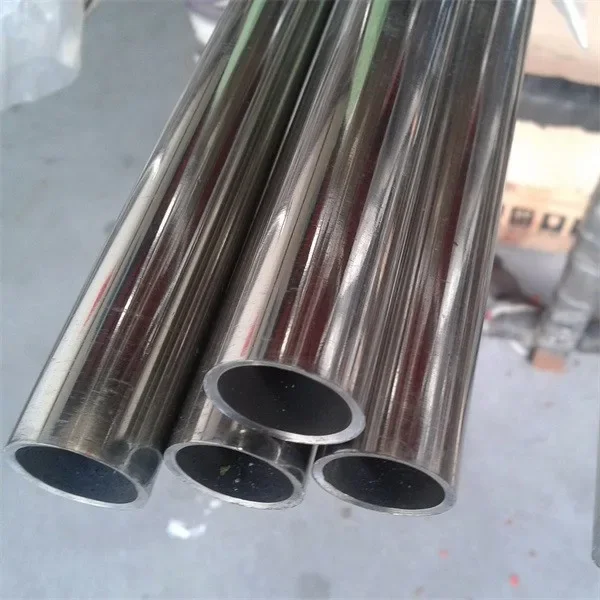

SS 317 Seamless Tube Supplier

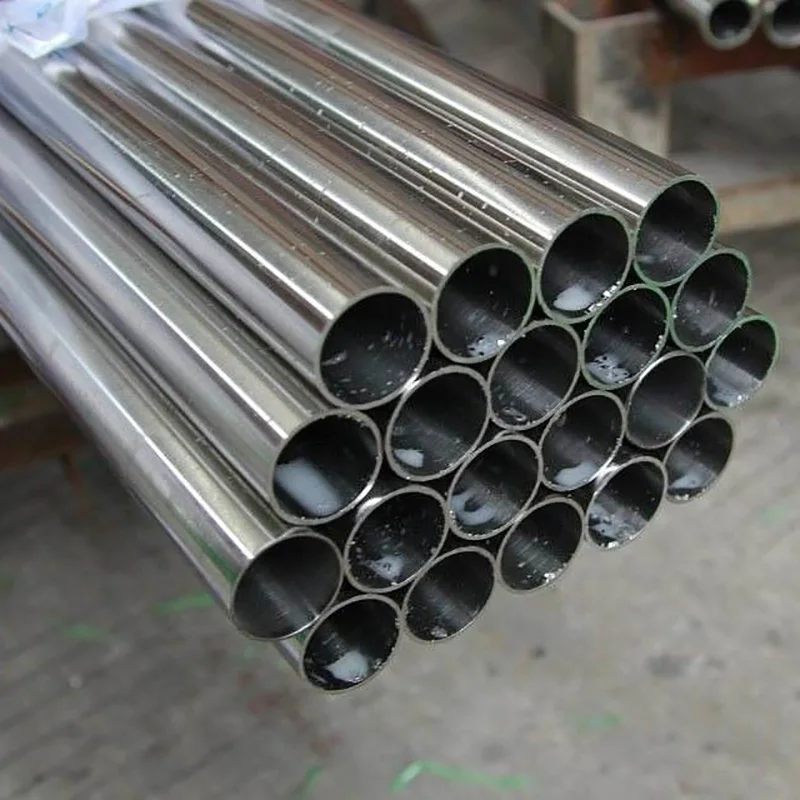

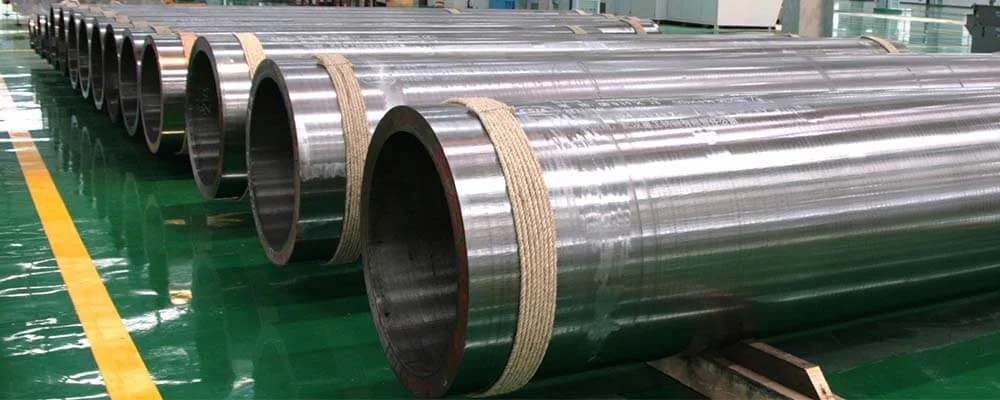

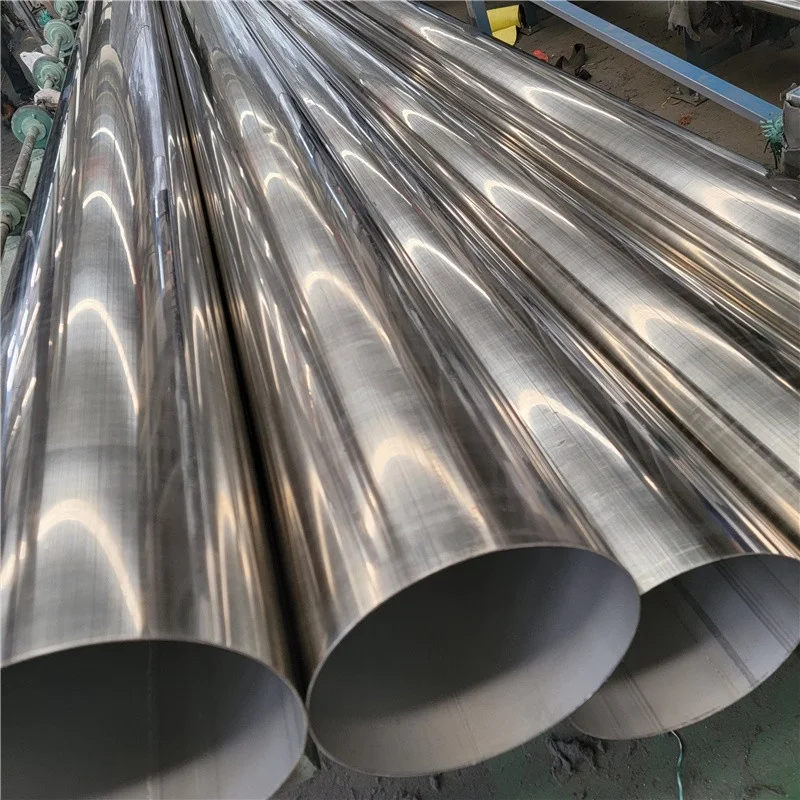

SS 317 Welded / ERW Tube

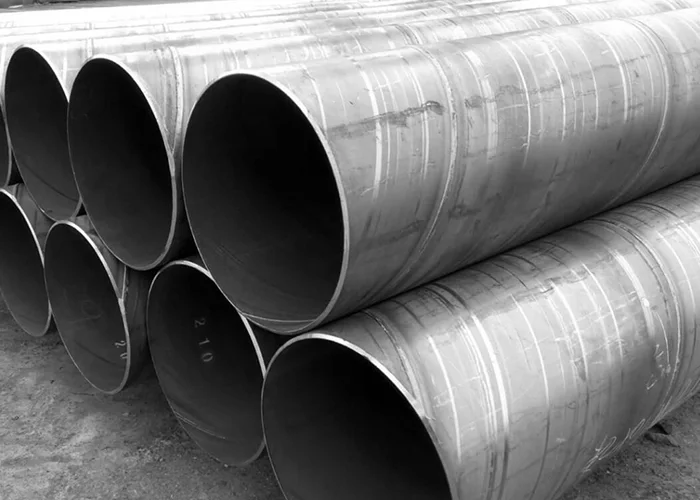

SS 317 Large Diameter Tubes
| Features | Specifications |
|---|---|
| SS Tube Grade | TP 304/ SS 304, TP 304H/ SS 304H, TP 304L/ SS 304L, TP 304LN/ SS 304LN, TP 316/ SS 316, TP 316H/ SS 316H, TP 316L/ SS 316L, TP 316LN/ SS 316LN, TP 316Ti/ SS 316Ti, TP 309/ SS 309, TP 310/ SS 310, TP 317L/ SS 317L, TP 321/ SS 321, TP 347/ SS 347, TP 409/ SS 409, TP 410/ SS 410, TP 420/ SS 420, TP 430/ SS 430, TP 446/ SS 446, TP 202/ SS 202 etc. |
| Specification | ASTM A 269/A 213 / EN 10216-5 / NACE MR0175/PED 97/23 EC |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH 10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| End | Plain End, Beveled End, Threaded |
| End Protection | Plastic Caps / Protective End Protectors |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Brand / Origin | European, Japanese, Korean, US, Russian, Indian, and Saudi Arabian Origin |
| Special Pipes | Stainless Steel 317 Fabricated Pipe (with radiography) |
| In Form of |
|
| In Length of | Single Random, Double Random, Standard & Cut length |
| Value Added Service |
|
| Test Certificate |
Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection. Includes: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports. |
| Specialize |
|
| UNSPSC Code |
|
SS 317 Seamless Pipe
SS 317 Welded Pipe
SS 317 Tubing
Thick wall SS 317 tube
SS 317 Round Tube
Custom Stainless Steel 317 Tubes tube
| Pipe/ Tube Type | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Stainless Steel 317 Tubes Pipe / Tubes | 1/2 | - | ||||
| Stainless Steel 317 Tubes Pipe / Tubes | 3/4 | - | ||||
| Stainless Steel 317 Tubes Pipe / Tubes | 1 | - | ||||
| Stainless Steel 317 Tubes Pipe / Tubes | 1.25 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 1.5 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 2 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 2.5 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 3 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 3.5 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 4 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 5 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 6 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 8 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 10 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 12 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 14 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 16 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 18 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 20 | |||||
| Stainless Steel 317 Tubes Pipe / Tubes | 22 | - | ||||
| Stainless Steel 317 Tubes Pipe / Tubes | 24 | - |
| Grade | Limit | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|---|
| AISI 317 | Min | – | – | – | – | – | 18.0 | 3.00 | 11.0 | – |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 20.0 | 4.00 | 15.0 | 0.10 |
Physical Properties
| Grade | Tensile Strength (MPa) Min | Yield Strength 0.2% Proof (MPa) Min | Elongation (% in 50mm) Min | Hardness (Max) | |
|---|---|---|---|---|---|
| Rockwell B (HR B) | Brinell (HB) | ||||
| AISI 317 | 515 | 205 | 35 | 95 | 217 |
| Nominal Pipe Size (inches) | Outside Diameter | Schedules (Wall Thickness & Weight) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inches | 5S | 10S | 40S | 80S | |||||
| WT (mm) | kg/m | WT (mm) | kg/m | WT (mm) | kg/m | WT (mm) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 | 0.28 | 1.73 | 0.37 | 2.42 | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 | 0.49 | 2.24 | 0.63 | 3.03 | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 | 0.63 | 2.32 | 0.85 | 3.20 | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 | 0.81 | 2.11 | 1.00 | 2.77 | 1.27 | 3.74 | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 | 1.02 | 2.11 | 1.28 | 2.87 | 1.68 | 3.92 | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 | 1.66 | 2.77 | 2.69 | 3.56 | 3.39 | 4.86 | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 | 1.91 | 2.77 | 3.11 | 3.69 | 4.06 | 5.08 | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 | 2.40 | 2.77 | 3.93 | 3.92 | 5.45 | 5.54 | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.64 | 7.01 | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 | 4.52 | 3.05 | 6.46 | 5.49 | 11.3 | 7.62 | 15.3 |
| 4 | 114.3 | 4.500 | 2.11 | 5.84 | 3.05 | 8.37 | 6.02 | 16.1 | 8.56 | 22.3 |
| 6 | 168.3 | 6.625 | 2.77 | 11.3 | 3.41 | 13.9 | 7.12 | 28.3 | 10.98 | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 | 14.8 | 3.76 | 20.0 | 8.18 | 42.5 | 12.70 | 64.6 |
| 12 | 323.9 | 12.750 | 3.97 | 31.3 | 4.58 | 36.1 | 9.53 | 73.9 | 12.70 | 97.4 |
