Incoloy 800HT Pipe Fittings are high-performance iron-nickel-chromium alloy components engineered specifically for applications demanding the highest levels of creep and stress-rupture resistance. Manufactured under the precise ASTM B366 and ASME SB366 specifications, these Alloy 800HT buttweld fittings feature a tightly controlled carbon range ($0.06 \text{ to } 0.10\%$) combined with a restricted total concentration of aluminum and titanium ($0.85 \text{ to } 1.20\%$). To maximize its high-temperature performance, the material undergoes a specialized high-temperature solution annealing process that optimizes the grain structure, making it ideal for the most demanding applications in chemical cracking and power generation piping.
We supply a wide range of critical pipeline configurations including Incoloy 800HT elbows, tees, reducers, crosses, and caps. Available in both seamless and welded constructions, our fittings are fully manufactured to meet precise dimensional standards. Our Alloy 800HT fittings offer outstanding long-term durability and resistance to oxidation, sulfidation, and carburization at continuous service temperatures above 1100°F (593°C).
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Type | Seamless / Welded / Fabricated Pipe Fittings |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pressure | Threaded end-2000lb/3000lb/6000lbs Pipe Fittings; Socket-weld end-3000/6000/9000lbs Pipe Fittings |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Surface Treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Special Design | As per your drawing |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, Ultrasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, Electric bevelling machine, Sand-blasting machine, etc. |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Inconel 600 90º Elbows, Inconel 600 45º Elbows, Inconel 600 Tees, Inconel 600 Crosses, Inconel 600 Couplings, Inconel 600 Reducers, Inconel 600 Inserts, Inconel 600 Caps, Inconel 600 Nipples, and Inconel 600 Unions. Inconel 600 Pipe socket weld fittings are available in class 3000, 6000 and 9000. Inconel 600 Pipe threaded fittings are available in class 2000, 3000 and 6000. Inconel 600 Forged Pipe Fittings – Socket Weld & Threaded, Inconel 600 Equal Tees & Inconel 600 Reducing Tees, Inconel 600 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Inconel 600 Union, Inconel 600 Nipples, Inconel 600 Couplings, Inconel 600 Plugs |
| Key markets and industries |
|
| Reason to choose / Key properties |
|
| Inconel Grades |
|

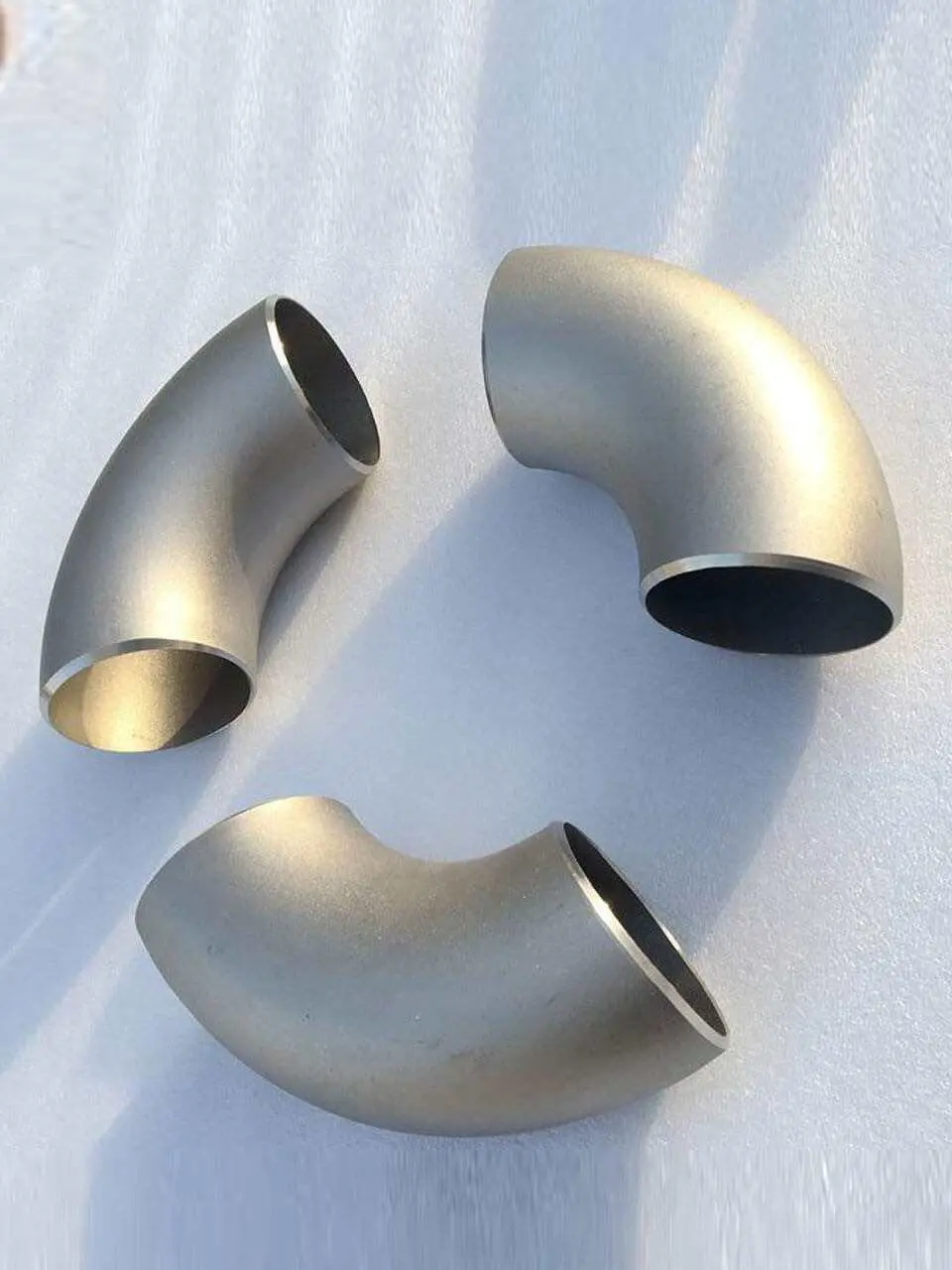

Incoloy 800HT Elbow

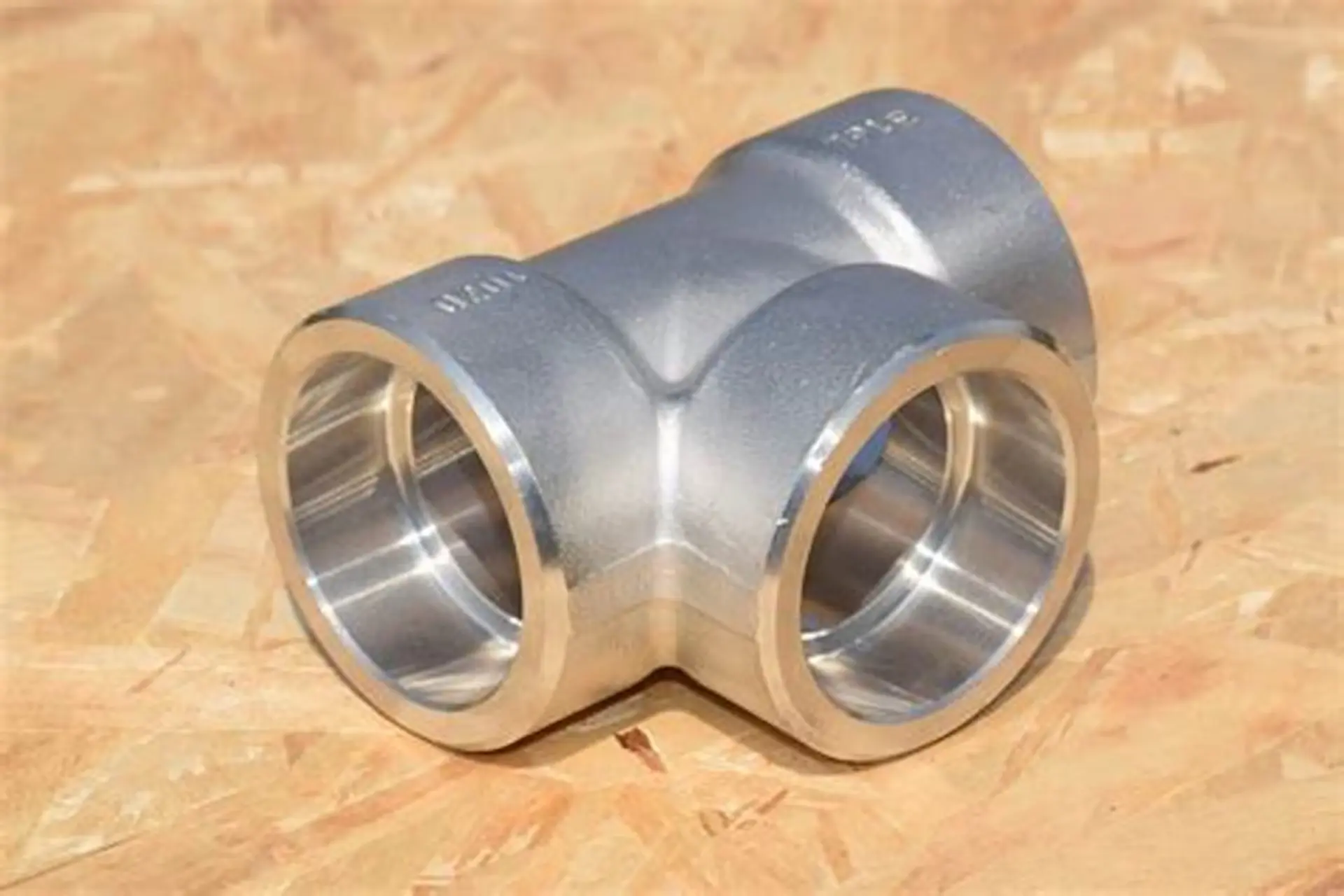

Incoloy 800HT Tee

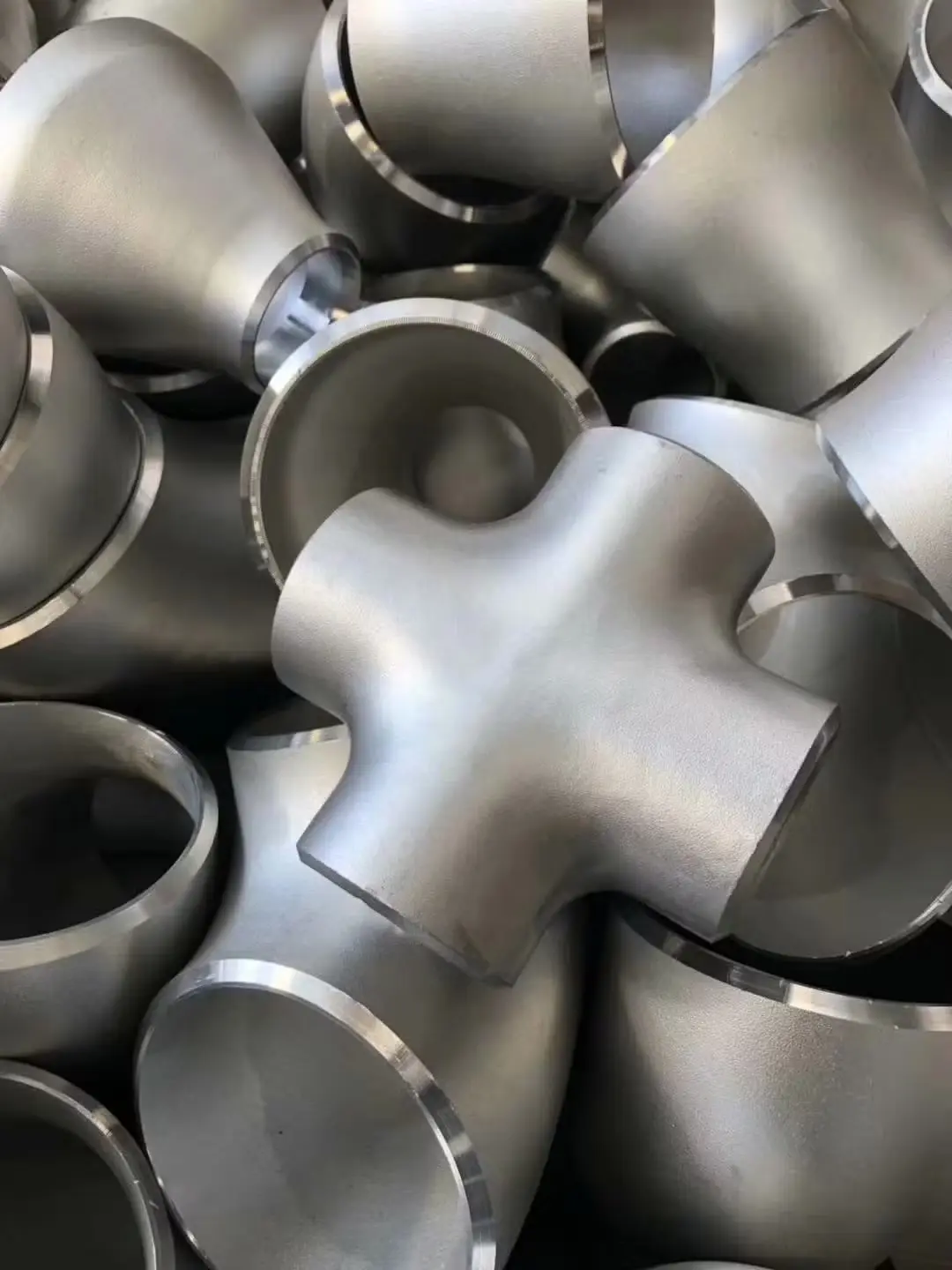

Incoloy 800HT Cross
Incoloy 800HT Reducer

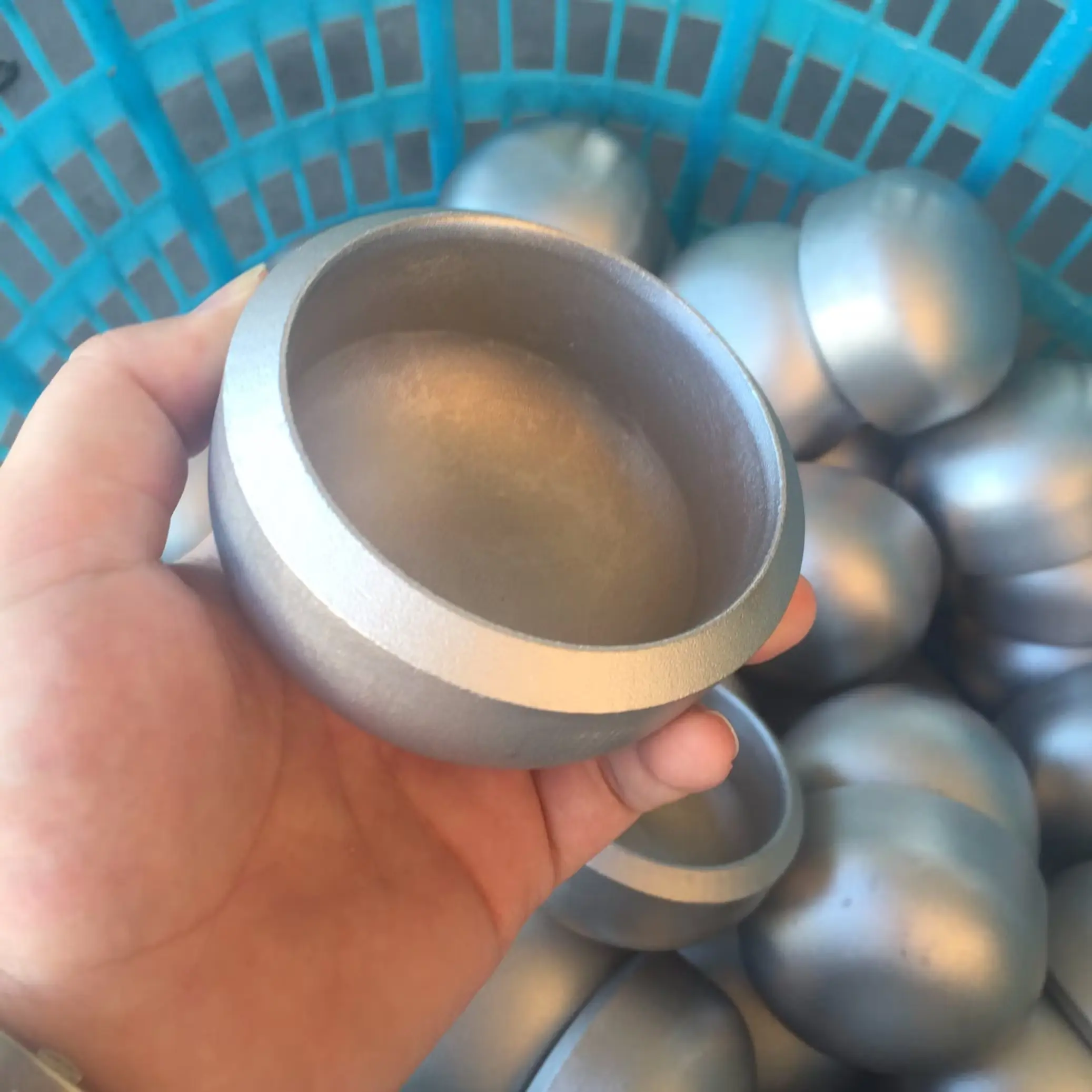

Incoloy 800HT End Cap

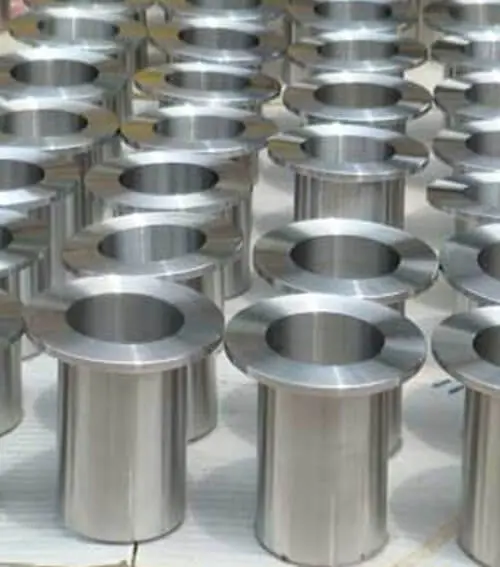

Incoloy 800HT Stub End
| Element | Incoloy 800HT / Alloy 800HT (Value %) |
|---|---|
| Nickel (Ni) | 30.0 – 35.0 |
| Chromium (Cr) | 19.0 – 23.0 |
| Iron (Fe) | 39.5 min |
| Carbon (C) | 0.06 – 0.10 |
| Aluminum (Al) + Titanium (Ti) | 0.85 – 1.20 |
| Aluminum (Al) | 0.15 – 0.60 |
| Titanium (Ti) | 0.15 – 0.60 |
| Manganese (Mn) | 1.5 max |
| Silicon (Si) | 1.0 max |
| Sulfur (S) | 0.015 max |
| Copper (Cu) | 0.75 max |
Physical Properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 500 min |
| Yield Strength (0.2% Offset, MPa) | 175 min |
| Elongation (%) | 35 min |
| Hardness (Brinell HB) | 130 – 150 max |
| Density (g/cm³) | 7.94 |
| Melting Point | 1357 – 1385 °C |
