Hastelloy C22 Pipe Fittings are high-performance nickel-chromium-molybdenum-tungsten alloy components designed to offer superior corrosion resistance compared to other nickel alloys, including Hastelloy C-276 and Alloy 625. Manufactured in complete compliance with ASTM B366 and ASME SB366 standards, these Alloy C22 buttweld fittings provide exceptional protection against pitting, crevice corrosion, and chloride-induced stress corrosion cracking. The balanced chemistry of this grade offers outstanding resistance to a broad range of aggressive chemical processing environments, including both strong reducing and oxidizing media like wet chlorine, nitric acid, and chlorine dioxide.

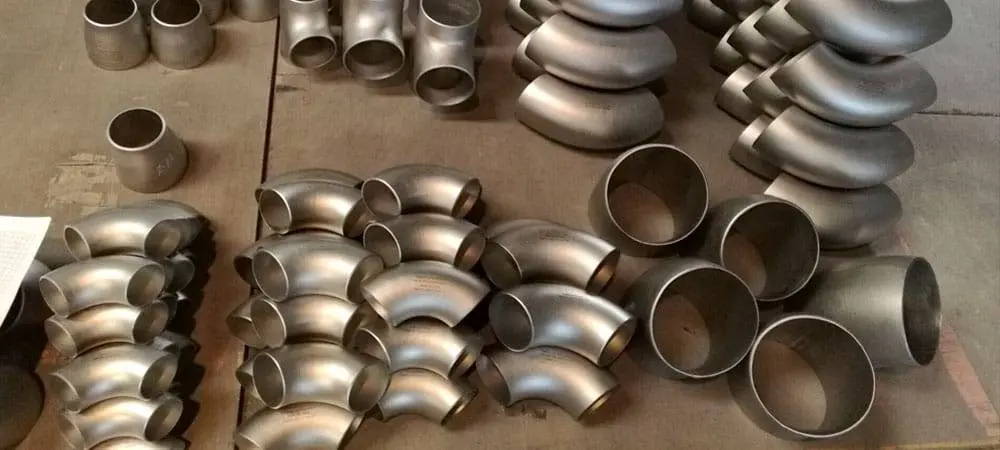

We supply a wide variety of pipeline components such as Hastelloy C22 elbows, tees, reducers, stub ends, and caps. These are available in both seamless and welded construction types to match precise industrial piping schedules. Selecting our Alloy C22 fittings ensures high thermal stability and robust mechanical properties for demanding applications in pharmaceutical manufacturing, chemical synthesis, and pollution control systems.
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Hastelloy C276 (UNS N10276, Alloy C276, 2.4819), Hastelloy C22 (UNS N06022, Alloy C22, 2.4602), Hastelloy B2 (UNS N10665, Alloy B2, 2.4617), Hastelloy X (Alloy X) |
| Type | Seamless / Welded / Fabricated Pipe Fittings |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pressure | Threaded end-2000lb/3000lb/6000lbs Pipe Fittings; Socket-weld end-3000/6000/9000lbs Pipe Fittings |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Surface Treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Special Design | As per your drawing |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, Ultrasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, Electric bevelling machine, Sand-blasting machine, etc. |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Hastelloy B2 90º Elbows, Hastelloy B2 45º Elbows, Hastelloy B2 Tees, Hastelloy B2 Crosses, Hastelloy B2 Couplings, Hastelloy B2 Reducers, Hastelloy B2 Inserts, Hastelloy B2 Caps, Hastelloy B2 Nipples, and Hastelloy B2 Unions. Hastelloy B2 Pipe socket weld fittings are available in class 3000, 6000 and 9000. Hastelloy B2 Pipe threaded fittings are available in class 2000, 3000 and 6000. Hastelloy B2 Forged Pipe Fittings – Socket Weld & Threaded, Hastelloy B2 Equal Tees & Hastelloy B2 Reducing Tees, Hastelloy B2 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Hastelloy B2 Union, Hastelloy B2 Nipples, Hastelloy B2 Couplings, Hastelloy B2 Plugs |
| Key markets and industries |
|

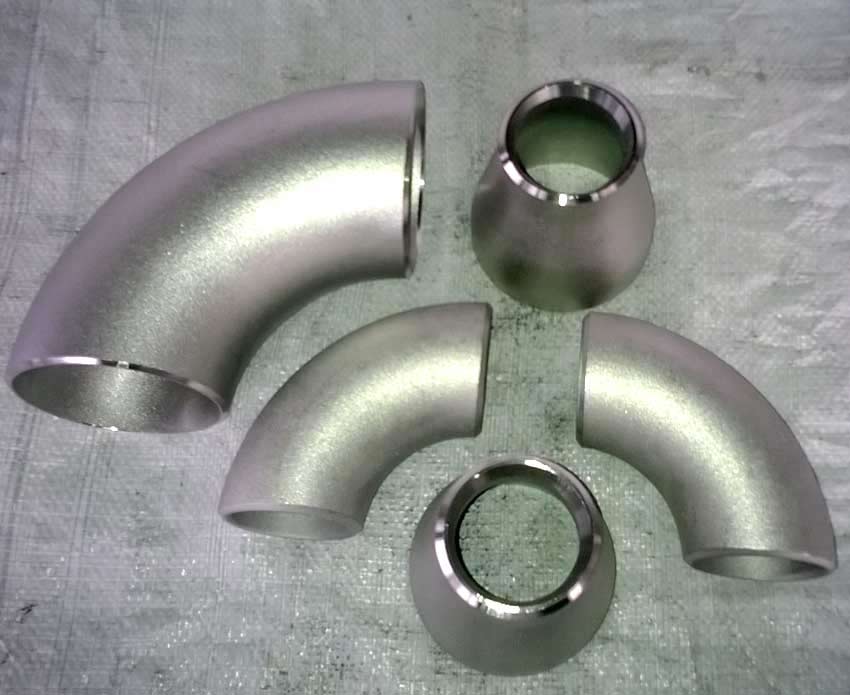

Hastelloy C22 Elbow

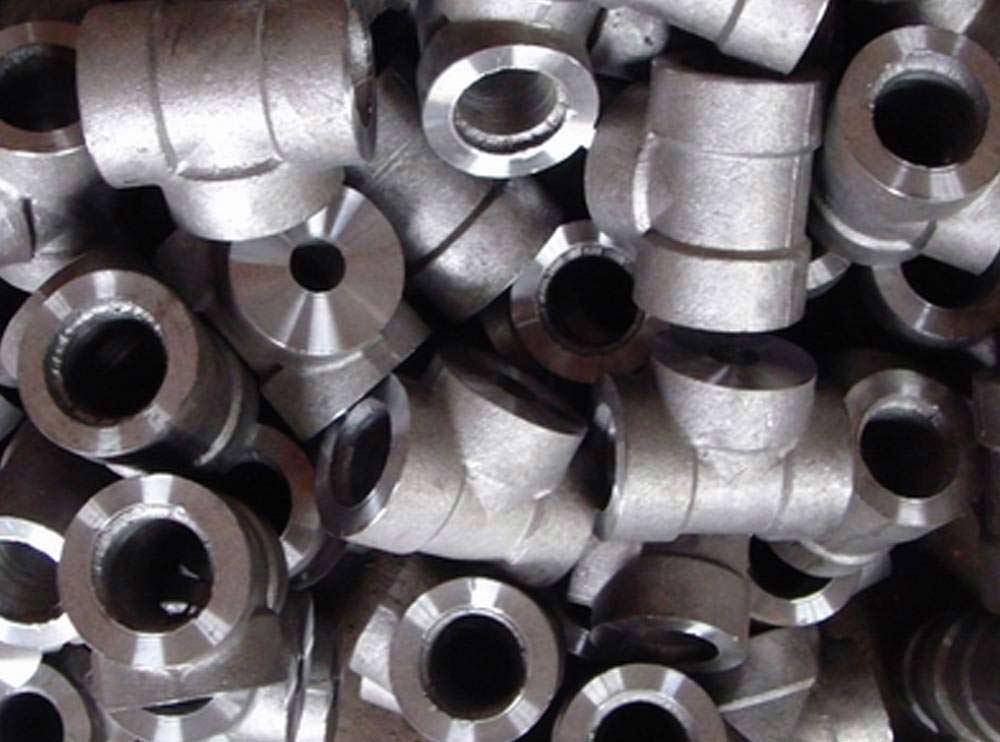

Hastelloy C22 Tee
Hastelloy C22 Cross
Hastelloy C22 Reducer
Hastelloy C22 End Cap
Hastelloy C22 Stub End
| Element | Hastelloy C22 / Alloy C22 (Value %) |
|---|---|
| Nickel (Ni) | 56.0 min |
| Chromium (Cr) | 20.0 – 22.5 |
| Molybdenum (Mo) | 12.5 – 14.5 |
| Iron (Fe) | 2.0 – 6.0 |
| Tungsten (W) | 2.5 – 3.5 |
| Cobalt (Co) | 2.5 max |
| Carbon (C) | 0.01 max |
| Manganese (Mn) | 0.5 max |
| Silicon (Si) | 0.08 max |
| Phosphorus (P) | 0.02 max |
| Sulfur (S) | 0.02 max |
| Vanadium (V) | 0.35 max |
Physical Properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 690 min |
| Yield Strength (0.2% Offset, MPa) | 310 min |
| Elongation (%) | 45 min |
| Hardness (Brinell HB) | 210 max |
| Density (g/cm³) | 8.69 |
| Melting Point | 1357 – 1399 °C |
