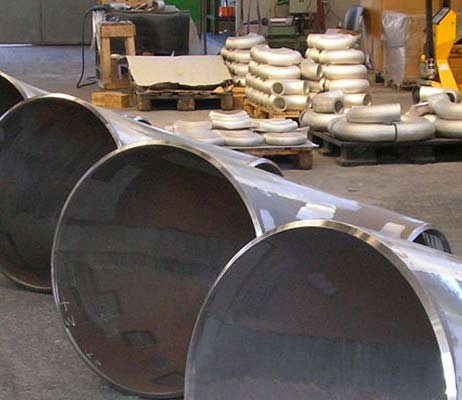

2205 Duplex Pipe Fittings are premium piping components manufactured from a nitrogen-enhanced dual-phase stainless steel alloy. Specifically engineered to bridge the performance gap between standard austenitic grades and high-alloy alternatives, these fittings are produced in strict accordance with ASTM A815 and ASME SA815 standards. The microstructural composition of Duplex 2205 fittings consists of roughly equal parts of ferrite and austenite, providing them with nearly double the yield strength of standard stainless steels alongside exceptional resistance to localized corrosion.
Our extensive manufacturing line includes a complete selection of Duplex 2205 elbows, tees, reducers, stub ends, and caps. Available in both seamless and welded configurations, these components are highly sought after for marine environments, chemical processing, oil and gas extraction, and desalination plants. Their exceptional resistance to chloride stress corrosion cracking, pitting, and crevice corrosion guarantees long-term durability and structural reliability for demanding industrial pipelines.
| Specification | Details |
|---|---|
| Specification | ASTM A 815, ASME SA 815, ASTM A 182, ASME SA 182 |
| Grade | 2205 |
| Type | Seamless / Welded / Fabricated Pipe Fittings |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
| Pressure | Threaded end-2000lb/3000lb/6000lbs Pipe Fittings; Socket-weld end-3000/6000/9000lbs Pipe Fittings |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Surface Treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Special Design | As per your drawing |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, Ultrasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, Electric bevelling machine, Sand-blasting machine, etc. |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Duplex 2205 90º Elbows, Duplex 2205 45º Elbows, Duplex 2205 Tees, Duplex 2205 Crosses, Duplex 2205 Couplings, Duplex 2205 Reducers, Duplex 2205 Inserts, Duplex 2205 Caps, Duplex 2205 Nipples, and Duplex 2205 Unions. Duplex 2205 Pipe socket weld fittings are available in class 3000, 6000 and 9000. Duplex 2205 Pipe threaded fittings are available in class 2000, 3000 and 6000. Duplex 2205 Forged Pipe Fittings – Socket Weld & Threaded, Duplex 2205 Equal Tees & Duplex 2205 Reducing Tees, Duplex 2205 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Duplex 2205 Union, Duplex 2205 Nipples, Duplex 2205 Couplings, Duplex 2205 Plugs |
| Key markets and industries |
|
2205 Duplex Elbow
2205 Duplex Tee
2205 Duplex Cross
2205 Duplex Reducer
2205 Duplex End Cap
2205 Duplex Stub End
| Element | Duplex 2205 / UNS S32205 (Value %) |
|---|---|
| Iron (Fe) | Balance (approx. 68.0) |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Manganese (Mn) | 2.0 max |
| Silicon (Si) | 1.0 max |
| Carbon (C) | 0.03 max |
| Phosphorus (P) | 0.03 max |
| Sulfur (S) | 0.02 max |
Physical Properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 655 min |
| Yield Strength (0.2% Offset, MPa) | 450 min |
| Elongation (%) | 25 min |
| Hardness (Brinell HB) | 293 max |
| Density (g/cm³) | 7.80 |
| Melting Point | 1385 – 1440 °C |
