Copper Nickel Pipe Fittings (commonly known as Cupronickel or Cu-Ni fittings) are specialized piping components designed for optimal performance in harsh marine and industrial environments. Manufactured primarily in accordance with ASME B16.9 and MSS-SP-43 standards, these fittings are predominantly available in two widely used grades: Cu-Ni 90/10 (C70600) and Cu-Ni 70/30 (C71500). The addition of iron and manganese to the copper-nickel matrix significantly enhances their resistance to erosion, general corrosion, and localized stress cracking, making them indispensable for handling flowing seawater.
Our premium production line includes a full selection of copper nickel elbows, tees, reducers, stub ends, and end caps. Available in both seamless and welded configurations, these fittings offer outstanding thermal conductivity and natural antifouling properties that inhibit the growth of marine organisms. Consequently, they are the material of choice for shipboard piping, seawater desalination systems, coastal power generation stations, and offshore oil and gas production platforms.
| Specification | Details |
|---|---|
| Specification | Copper Nickel: ASTM B122, B171, B466, B467 |
| Copper Nickel Grades | Copper Nickel Alloy UNS C70600, UNS C71500, Cupro Nickel (Cu-Ni) 90/10, Cupro Nickel (Cu-Ni) 70/30./td> |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size Range | 1/2" NB to 48" NB in Sch 10s, 40s, 80s, 160s, XXS |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Pressure Ratings | Threaded: 2000lb, 3000lb, 6000lb; Socket-weld: 3000lb, 6000lb, 9000lb |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Surface Treatment | Transparent oil, rust-proof black oil, or hot-dip galvanizing |
| Test Certificates | EN 10204 3.1B, Raw Material Certificate, 100% Radiography, Ultrasonic (UT), Hydrostatic Test Report, Third-Party Inspection |
| Key Markets | Oil & Gas Pipelines, Heavy Oil Refineries, Petrochemicals, Power Generation |

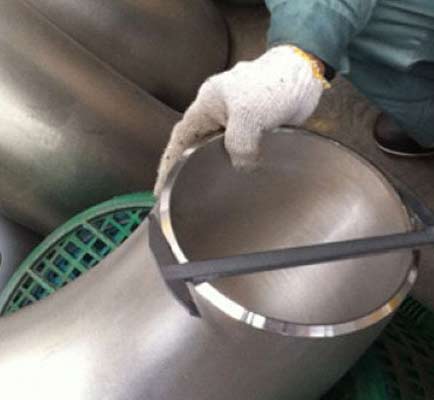

Copper Nickel Elbow

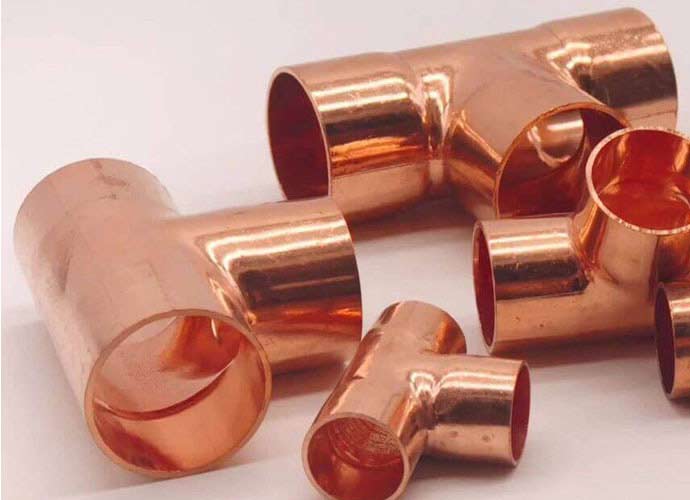

Copper Nickel Tee

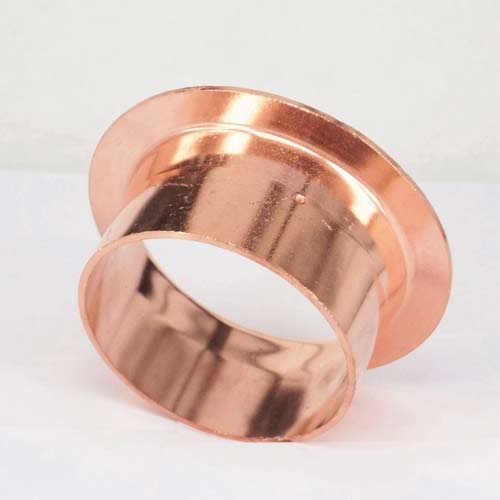

Copper Nickel Stub End

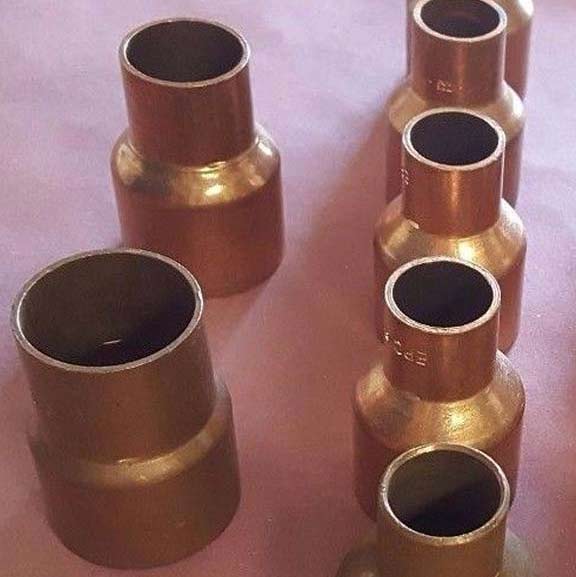

Copper Nickel Reducer

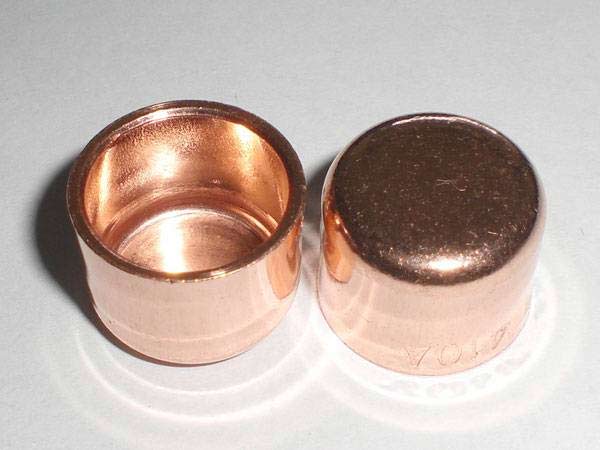

Copper Nickel End Cap

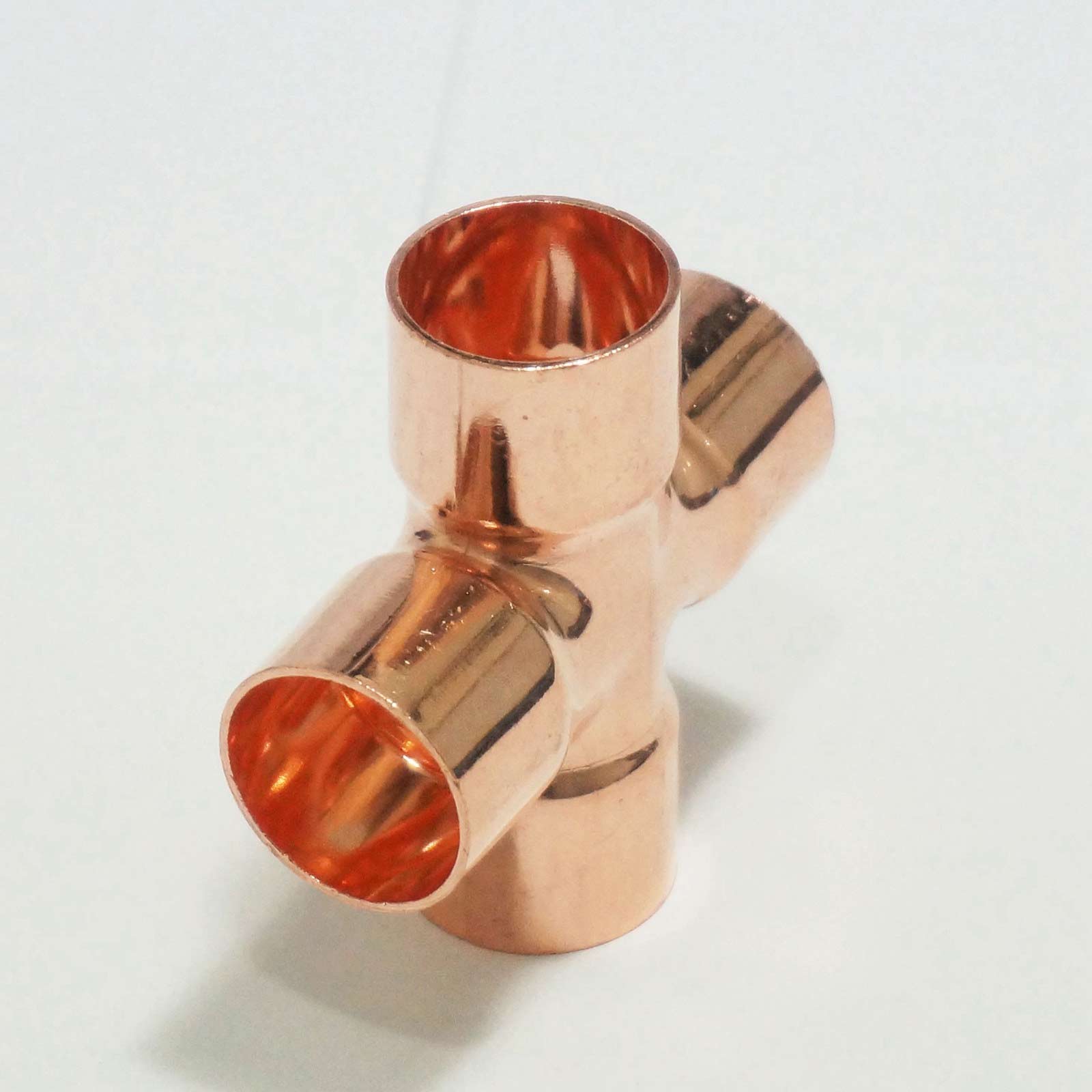

Copper Nickel Cross
| Specification | Description |
|---|---|
| ASTM A53 / A53M – 12 | Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless |
| ASTM A106 / A106M – 13 | Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service |
| ASTM A134 – 96(2012) | Standard Specification for Pipe, Steel, Electric-Fusion (Arc)-Welded (Sizes NPS 16 and Over) |
| ASTM A135 / A135M – 09 | Standard Specification for Electric-Resistance-Welded Steel Pipe |
| ASTM A139 / A139M – 04(2010) | Standard Specification for Electric-Fusion (Arc)-Welded Steel Pipe (NPS 4 and Over) |
| ASTM A178 / A178M – 02(2012) | Standard Specification for Electric-Resistance-Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater Tubes |
| ASTM A179 / A179M – 90a(2012) | Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes |
| ASTM A192 / A192M – 02(2012) | Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service |
| ASTM A210 / A210M – 02(2012) | Standard Specification for Seamless Medium-Carbon Steel Boiler and Superheater Tubes |
| ASTM A214 / A214M – 96(2012) | Standard Specification for Electric-Resistance-Welded Carbon Steel Heat-Exchanger and Condenser Tubes |
| ASTM A252 – 10 | Standard Specification for Welded and Seamless Steel Pipe Piles |
| ASTM A254 / A254M – 12 | Standard Specification for Copper-Brazed Steel Tubing |
| ASTM A381 – 96(2012) | Standard Specification for Metal-Arc-Welded Steel Pipe for Use With High-Pressure Transmission Systems |
| ASTM A423 / A423M – 09 | Standard Specification for Seamless and Electric-Welded Low-Alloy Steel Tubes |
| ASTM A450 / A450M – 10 | Standard Specification for General Requirements for Carbon and Low Alloy Steel Tubes |
| ASTM A498 – 06 | Standard Specification for Seamless and Welded Carbon Steel Heat-Exchanger Tubes with Integral Fins |
| ASTM A500 / A500M – 13 | Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes |
| ASTM A501 – 07 | Standard Specification for Hot-Formed Welded and Seamless Carbon Steel Structural Tubing |
| ASTM A512 – 06(2012) | Standard Specification for Cold-Drawn Buttweld Carbon Steel Mechanical Tubing |
| ASTM A513 / A513M – 12 | Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing |
| ASTM A519 – 06(2012) | Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing |
| ASTM A523 – 96(2012) | Standard Specification for Plain End Seamless and Electric-Resistance-Welded Steel Pipe for High-Pressure Pipe-Type Cable Circuits |
| ASTM A524 – 96(2012) | Standard Specification for Seamless Carbon Steel Pipe for Atmospheric and Lower Temperatures |
| ASTM A530 / A530M – 12 | Standard Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe |
| ASTM A556 / A556M – 96(2012) | Standard Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes |
| ASTM A587 – 96(2012) | Standard Specification for Electric-Resistance-Welded Low-Carbon Steel Pipe for the Chemical Industry |
| ASTM A589 / A589M – 06(2012) | Standard Specification for Seamless and Welded Carbon Steel Water-Well Pipe |
| ASTM A595 / A595M – 11 | Standard Specification for Steel Tubes, Low-Carbon or High-Strength Low-Alloy, Tapered for Structural Use |
| ASTM A618 / A618M – 04(2010) | Standard Specification for Hot-Formed Welded and Seamless High-Strength Low-Alloy Structural Tubing |
| ASTM A671 / A671M – 13 | Standard Specification for Electric-Fusion-Welded Steel Pipe for Atmospheric and Lower Temperatures |
| ASTM A672 / A672M – 09 | Standard Specification for Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures |
| ASTM A691 / A691M – 09 | Standard Specification for Carbon and Alloy Steel Pipe, Electric-Fusion-Welded for High-Pressure Service at High Temperatures |
| ASTM A714 – 99(2009)e1 | Standard Specification for High-Strength Low-Alloy Welded and Seamless Steel Pipe |
| ASTM A733 – 13 | Standard Specification for Welded and Seamless Carbon Steel and Austenitic Stainless Steel Pipe Nipples |
| ASTM A787 / A787M – 09 | Standard Specification for Electric-Resistance-Welded Metallic-Coated Carbon Steel Mechanical Tubing |
| ASTM A795 / A795M – 13 | Standard Specification for Black and Hot-Dipped Zinc-Coated (Galvanized) Welded and Seamless Steel Pipe for Fire Protection Use |
| ASTM A822 / A822M – 04(2010) | Standard Specification for Seamless Cold-Drawn Carbon Steel Tubing for Hydraulic System Service |
| ASTM A847 / A847M – 12 | Standard Specification for Cold-Formed Welded and Seamless High-Strength, Low-Alloy Structural Tubing with Improved Atmospheric Corrosion Resistance |
| ASTM A865 / A865M – 06(2012) | Standard Specification for Threaded Couplings, Steel, Black or Zinc-Coated (Galvanized) Welded or Seamless, for Use in Steel Pipe Joints |
| ASTM A972 / A972M – 00(2010) | Standard Specification for Fusion Bonded Epoxy-Coated Pipe Piles |
| ASTM A984 / A984M – 03(2009) | Standard Specification for Steel Line Pipe, Black, Plain-End, Electric-Resistance-Welded |
| ASTM A1005 / A1005M – 00(2010) | Standard Specification for Steel Line Pipe, Black, Plain End, Longitudinal and Helical Seam, Double Submerged-Arc Welded |
| ASTM A1006 / A1006M – 00(2010) | Standard Specification for Steel Line Pipe, Black, Plain End, Laser Beam Welded |
| ASTM A1020 / A1020M – 02(2012) | Standard Specification for Steel Tubes, Carbon and Carbon Manganese, Fusion Welded, for Boiler, Superheater, Heat Exchanger and Condenser Applications |
| ASTM A1024 / A1024M – 02(2012) | Standard Specification for Steel Line Pipe, Black, Plain-End, Seamless |
| ASTM A1037 / A1037M – 05(2012) | Standard Specification for Steel Line Pipe, Black, Furnace-Butt-Welded |
| ASTM A1065 / A1065M – 09 | Standard Specification for Cold-Formed Electric-Fusion (Arc) Welded High-Strength Low-Alloy Structural Tubing in Shapes, with 50 ksi [345 MPa] Minimum Yield Point |
| ASTM A1076 / A1076M – 13 | Standard Specification for Cold Formed Carbon Structural Steel Tubing Made from Metallic Precoated Sheet Steel |
| ASTM A1085 – 13 | Standard Specification for Cold-Formed Welded Carbon Steel Hollow Structural Sections (HSS) |
| Element | Cu-Ni 90/10 (C70600) % | Cu-Ni 70/30 (C71500) % |
|---|---|---|
| Copper (Cu) | Balance (approx. 88.6) | Balance (approx. 68.9) |
| Nickel (Ni) | 9.0 – 11.0 | 29.0 – 33.0 |
| Iron (Fe) | 1.0 – 1.8 | 0.4 – 1.0 |
| Manganese (Mn) | 1.0 max | 1.0 max |
| Zinc (Zn) | 0.5 max | 1.0 max |
| Lead (Pb) | 0.02 max | 0.02 max |
| Carbon (C) | 0.05 max | 0.05 max |
| Sulfur (S) | 0.02 max | 0.02 max |
Physical Properties
| Property | Cu-Ni 90/10 (C70600) | Cu-Ni 70/30 (C71500) |
|---|---|---|
| Tensile Strength (MPa) | 275 min | 365 min |
| Yield Strength (0.2% Offset, MPa) | 105 min | 125 min |
| Elongation (%) | 30 min | 30 min |
| Hardness (Rockwell B) | 65 – 75 max | 70 – 80 max |
| Density (g/cm³) | 8.94 | 8.94 |
| Melting Point | 1100 – 1145 °C | 1170 – 1240 °C |
