Welcome to Golden Steel Material Let’s Talk
Golden Steel Material is a premier ASTM A403 WP 310/310S Stainless Steel Pipe Fittings Supplier in Saudi Arabia, designed for critical applications operating in extreme temperature environments. Grade 310/310S is widely known as the "25-20" stainless steel, featuring a high alloy balance of 25% Chromium and 20% Nickel. This metallurgical composition provides exceptional resistance to oxidation and scaling, making it the preferred alloy for continuous operation in temperatures up to 1100°C (2000°F). Whether serving furnace components, burner assemblies, or kiln process piping, our 310 fittings provide the unrivaled thermal endurance required for intense heat service.
As a specialized WP 310 pipe fittings stockist, we deliver components manufactured strictly to ASTM A403 and ASME SA403 specifications. The "WP" designation confirms that our fittings have undergone the necessary wrought manufacturing processes to meet rigorous pressure-temperature class requirements. Our inventory encompasses both WP-S (seamless) and WP-W (welded) configurations. By utilizing 310S (Low Carbon) variants, we further ensure that the fittings maintain excellent resistance to intergranular corrosion, which is a critical factor when piping systems undergo cyclical thermal loading or are subjected to sulfur-bearing atmospheres common in high-heat processing.
We serve as a trusted 310/310S stainless steel pipe fittings exporter in Saudi Arabia, supplying high-performance infrastructure across the Jubail, Yanbu, and Dammam industrial hubs. Every fitting is supported by MTC EN 10204 3.1 certification and undergoes rigorous quality inspections, including PMI (Positive Material Identification) and dimensional accuracy checks per ASME B16.9 and B16.11 standards. When your piping design demands the highest level of oxidative stability under extreme heat, our 310/310S fittings provide the metallurgical reliability required to minimize maintenance costs and prevent premature component failure.
| Specification | Details |
|---|---|
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | 304 (UNS S30400), 304L (UNS S30403), 304H (UNS S30409), 310 (UNS S31000), 310S (UNS S31008), 316 (UNS S31600), 316L (UNS S31603), 316H (UNS S31609), 317 (UNS S31700), 317L (UNS S31703), 321 (UNS S32100), 321H (UNS S32109), 347 (UNS S34700), 347H (UNS S34709), 410 (UNS S41000), 446 (UNS S44600), 904L (UNS N08904), 31254 (UNS S31254) |
| Type | Seamless / Welded / Fabricated Pipe Fittings |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pressure | Threaded end-2000lb/3000lb/6000lbs Pipe Fittings; Socket-weld end-3000/6000/9000lbs Pipe Fittings |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS |
| Surface Treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Special Design | As per your drawing |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, Ultrasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, Electric bevelling machine, Sand-blasting machine, etc. |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Stainless steel 90° Elbows, Stainless steel 45° Elbows, Stainless steel Tees, Stainless steel Crosses, Stainless steel Couplings, Stainless steel Reducers, Stainless steel Inserts, Stainless steel Caps, Stainless steel Nipples, and Stainless steel Unions. Stainless steel Pipe socket weld fittings are available in class 3000, 6000 and 9000. Stainless steel Pipe threaded fittings are available in class 2000, 3000 and 6000. Stainless steel Forged Pipe Fittings – Socket Weld & Threaded, Stainless steel Equal Tees & Stainless steel Reducing Tees, Stainless steel 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Stainless steel Union, Stainless steel Nipples, Stainless steel Couplings, Stainless steel Plugs |
| Key markets and industries |
|
| Reason to choose / Key properties |
|
| Stainless Steel Grades |
|

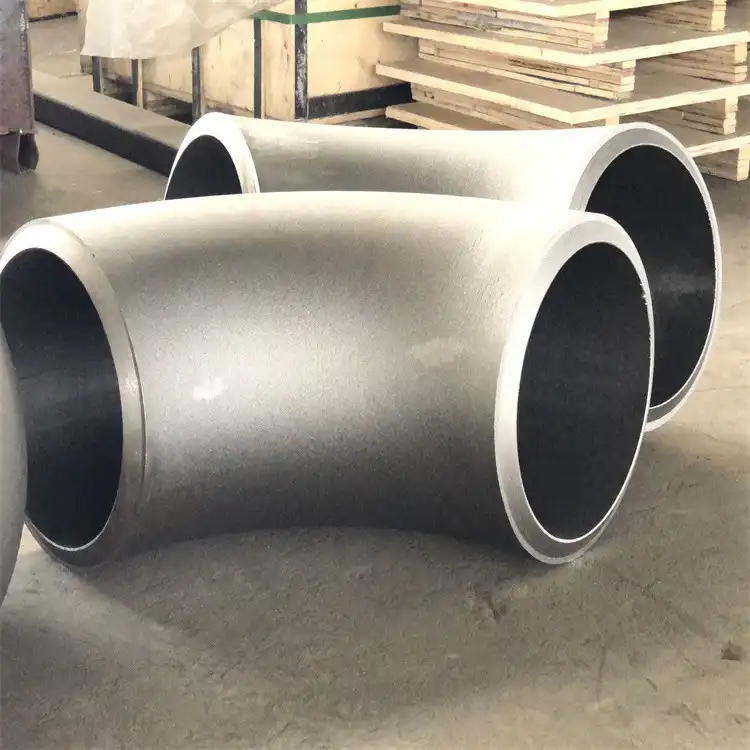

Stainless Steel 310 Elbow

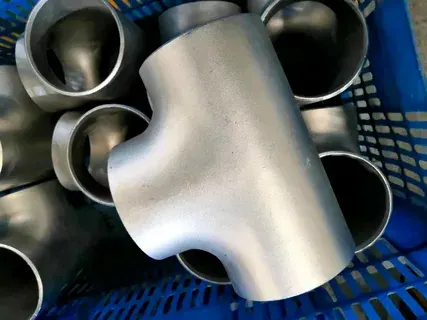

Stainless Steel 310 Tee
Stainless Steel 310 Cross

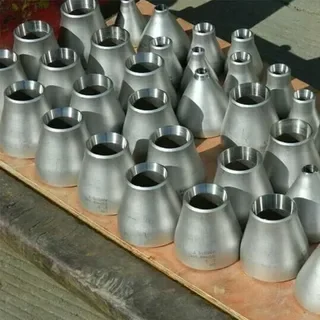

Stainless Steel 310 Reducer

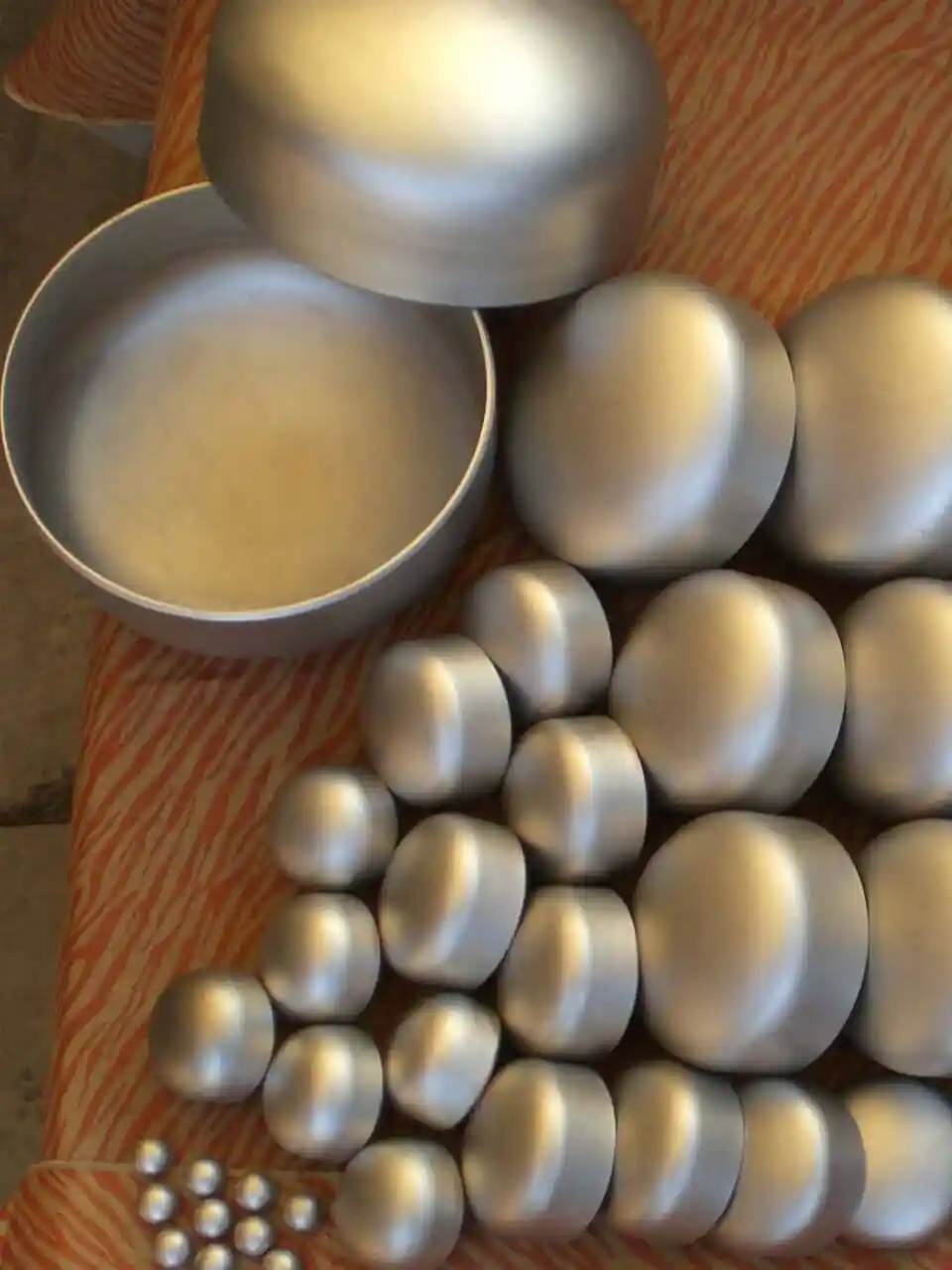

Stainless Steel 310 End Cap
Stainless Steel 310 Union
| Element | Grade SS 310 (Value %) |
|---|---|
| Chromium (CR) | 24.00 – 26.00 |
| Nickel (NI) | 19.00 – 21.00 |
| Iron (FE) | 54.7 min |
| Manganese (MN) | 2.00 max |
| Silicon (SI) | 0.15 max |
| Carbon (C) | 0.015 max |
| Molybdenum (MO) | 0.10 max |
| Phosphorous (P) | 0.020 max |
| Sulphur (S) | 0.015 max |
Physical Properties
| Property | Value (Typical) |
|---|---|
| Density (g/cm³) | 7.9 |
| Density (lb/in³) | 0.285 |
| Melting Point (°C) | 1354 – 1402 |
| Melting Point (°F) | 2470 – 2555 |
